Product Overview

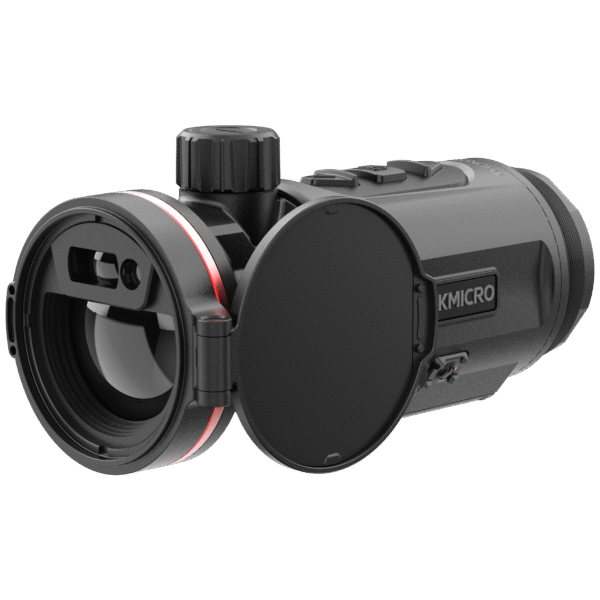

The HIKMICRO Thunder TQ35CL 3.0 features a 12um detector with a NETD of less than 15mK and a 640 resolution. Its 35mm lens supported by Image Pro 3.0 delivers finer details no matter in fields or forests, and the 1000m LRF-in-lens ensures precise distance measurement.
Key Features
- 640 × 512 resolution @12 μm thermal detector
- High sensitivity thermal module NETD < 15 mK (@25°C, F# = 1.0)
- 35 mm, F1.0 lens with detection range up to 1800 m
- 1920 × 1080 resolution 0.49-inch OLED display
- HIKMICRO Shutterless Image System (HSIS)
- Rechargeable and Replaceable Li-on Battery, 6h continuous operation
- High shock resistance up to 1000 g/0.4 ms
|
Specification |
|
|
Thermal Module |
|
|
Image Sensor |
Uncooled Focal Plane Arrays |
|
Max. Resolution |
640x512 |
|
Frame Rate |
50Hz |
|
Pixel Interval |
12μm |
|
Response Waveband |
8μm to 14μm |
|
NETD |
Less than 15mK (25 °C, F#=1.0) |
|
Lens (Focal Length) |
35mm, F1.0 |
|
Detection Range |
1800m |
|
Focus Mode |
Focus Knob |
|
Min. Focusing Distance |
10m |
|
Magnification |
1x |
|
Field of View(H × V), Degrees / m @100m |
12.5°x8.0°/21.9m x 14.0m |
|
Recommended Magnification of the Day Scope |
1-15x |
|
magnification of monocular mode |
2.0x-16.0x (8x) |
|
Image Display |
|
|
Display |
1920x1080, 0.49 inch, OLED |
|
Palettes |
Black Hot, White Hot, Red Hot, Fusion，Red monochrome, Green monochrome |
|
Exit Pupil |
25mm |
|
Eye Relief |
20mm |
|
Brightness Adjustment |
Yes |
|
Tone Adjustment |
Cold, Warm |
|
HSIS (HIKMICRO Shutterless Image System) |
Yes |
|
Image Pro 3.0 |
Yes |
|
System |
|
|
Record Video |
On-board Video Recording |
|
Capture Snapshot |
Yes |
|
Virtual Reticle |
Yes |
|
Standby Mode |
Yes |
|
Storage |
Built-in EMMC (64 GB) |
|
Hotspot |
Yes |
|
Reticle |
No |
|
Audio Recording |
Yes |
|
Recoil-activation Recording |
Yes |
|
Max. Recoil |
1000g/0.4ms |
|
Local Album |
Yes |
|
Image Calibration |
Yes |
|
Zeroing Profiles |
5 |
|
Power Supply |
|
|
Battery Type |
Replacable and Rechargeable Li-ion Battery Pack |
|
Battery Operating Time |
≥5h (25 °C, with hotspot off and LRF on) |
|
Type-C Power Supply |
5 VDC, 2 A |
|
General |
|
|
Protection Level |
IP67 |
|
Dimension |
152.3mm × 63mm × 74.1mm |
|
Weight |
525g with battery |
|
Working Temperature |
-30 °C to +55 °C (-22 °F to 131°F) |
|
Body Material |
Body & Lens Cover: Magnesium Alloy |
|
Center Height |
32mm |
|
Laser Rangefinder |
|
|
Safety Class for Laser |
Class 1 |
|
Wavelength |
905nm |
|
Max. Measuring Range |
1000m |
|
Measurement Accuracy |
±1m |
|
Min. Measuring Range |
10m |
|
LRF Module in Lens |
Yes |
