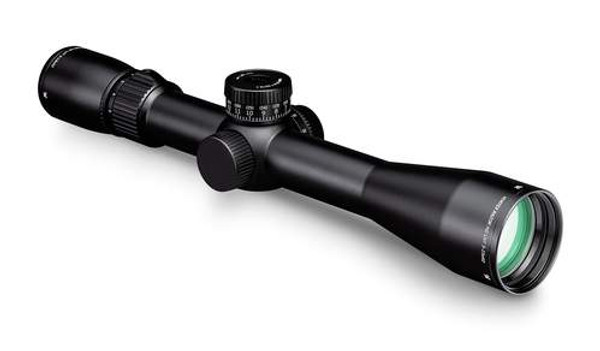

Product Overview
FEATURES
OPTICAL FEATURES
HD Optical System Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
XR™ Plus Fully Multi-Coated Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
APO System Index-matched lenses correct color across the entire visual spectrum.
Optically Indexed Lenses Optimize image sharpness and brightness from edge to edge.
Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Illuminated Center Dot Daylight bright illuminated center dot provides a precise point-of-aim in all lighting conditions.
CONSTRUCTION FEATURES
Tube Size 30 mm diameter provides maximized internal adjustment and strength.
Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Shockproof Rugged construction withstands recoil and impact.
Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
Locking Elevation Turret Integrated locking mechanism prevents accidental adjustments. Elevation turret provides fast, accurate, easily read elevation adjustments. Patent pending.
Large Diameter Capped Windage Turret Provide fast, accurate and easily read windage adjustments. Cap provides external protection for windage turret.
CONVENIENCE FEATURES
RevStop™ Zero System Patented streamlined design offers an easy to set, rock-solid return to zero after turret adjustments.
RETICLE
HSR-5i (MRAD)
Ideal for those who want enough information to utilize personalized ballistics, but prefer a clean look. The HSR-5i reticle can be used to effectively determine ranges, holdovers, windage corrections and moving target leads. The fine center crosshair subtensions on the HSR-5i reticle were carefully chosen to provide the optimum balance between precision aiming and low light visibility.
SPECIFICATIONS
Magnification 3-15x
Objective Lens Diameter 42 mm
Eye Relief 3.8 inches
Field of View 35.3-7.0 ft/100 yds
Tube Size 30 mm
Elevation Turret Style Locking/Zero Stop
Windage Turret Style Capped
Adjustment Graduation .1 MRAD
Travel Per Rotation 6 MRAD
Max Elevation Adjustment 23 MRAD
Max Windage Adjustment 23 MRAD
Parallax Setting 20 yards to infinity
Length 33.7 cm / 13.3 inches
Weight 541 grams / 19.1 oz
All Vortex Products bought from Extravision are covered by the Australian Vortex VIP Warranty
Our warranty is about you, not us. It's about taking care of you after the sale.
The VIP stands for a Very Important Promise to you, our customers. We will repair or replace your Vortex product in the event it becomes damaged or defective—at no charge to you other then return post from you to us. It doesn't matter how it happened, whose fault it was, or where you purchased it. You can count on the VIP Warranty for all riflescopes, red dots, rangefinders, binoculars, spotting scopes and monoculars.
•Unlimited Lifetime Warranty
•Fully transferable
•No warranty card to fill out
•No receipt needed to hang on to
If you ever have a problem, no matter the cause, we promise to take care of you.
The VIP warranty does not cover loss, misuse, theft or deliberate damage to the product.
