Product Overview
The laser rangefinder is seamlessly integrated into a slim-design riflescope. The rangefinder is compact, and the receiver and emitter are within the clearance limits of a single optical channel. The measuring range is 800 metres—the Thermion 2 LRF provides the hunter with an accurate sense of distance at the hunting site, helping to take a precise shot.
Thermion 2 LRF XL50 offers the highest level of thermal imaging. The image generated with the new 1024×768-pixel thermal sensor features high definition and rich detail, ideal for uncompromised trophy identification. The silhouettes, anatomy, and behavioural peculiarities of the animal are clearly visible and easily distinguished.

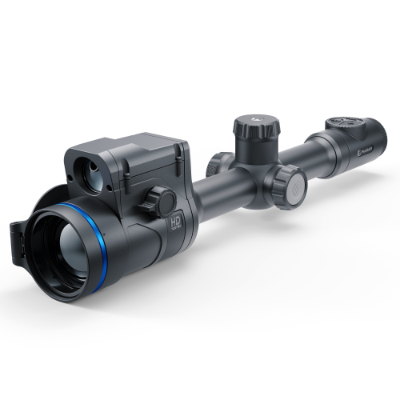

THERMION 2 LRF XL50
Our first thermal imaging riflescope with an HD resolution thermal sensor, the Pulsar Thermion 2 LRF XL50, offers the widest field of view, the most detailed image, and an extremely informative image even at high zoom.
Main specifications
Sensor: (NETD < 35 mK) @ 12 µm 1024x768 pix.
Objective lens: F50 / 1.0
Magnification, x: 1.75 – 14
FOV (HxV)degrees / m@100m: 14x10.5 / 24.6Ñ…18.5
Detection range: 2300 m
Revolutionary HD, clear, thermal image
Thermion 2 LRF XL50 offers the highest level of thermal imaging. The image generated with the new 1024×768- pixel thermal sensor features high definition and rich detail ideal for uncompromised trophy identification. The silhouettes, anatomy & behavioural peculiarities of the animal are clearly visible and easily distinguished.
High Definition Thermal Sensor
Sharp, richly contrasted thermal imaging is used for enhanced identification of animals, their extremities, and even the smallest details, i.e., branches, leaves, grass, and terrain.
Extreme image detail on high zoom
Variable 1.75-14x magnification (x8 digital zoom) provides improved focus and better overall object recognition at significant distances. The HD sensor allows for maintaining a high level of image detail across the whole magnification range. The zoom changes either gradually in a 2x step or continuously for a customized FOV / magnification ratio for each specific situation.
Precise laser range finding
Understanding the target distance is an essential factor in making the right decisions. The compact laser rangefinder, with a range of up to 800 metres, is seamlessly integrated into a slim-design riflescope. The receiver and emitter are within the clearance limits of a single optical channel.
Integrated ballistic calculator for long-range shooting
Thermion 2 LRF ensures accurate shooting at any distance. The built-in laser rangefinder gives the hunter an exact distance to the target. At the same time, the sophisticated internal ballistics algorithm calculates the suggested POA for accurate long-range shooting. Simply create a ballistic profile for your shooting equipment, upload it to the Thermion’s memory with the Stream Vision Ballistics App, and turn your Thermion 2 LRF XL50 into a highly accurate and efficient long-range aiming tool.
Wide field of view for easy scanning
Thermion 2 LRF XL50 offers a wide field of view for easy scanning and spotting. The large-format sensor allows for a well-balanced FOV / magnification ratio even at high zoom levels.
Premium HD-class germanium optics
For a clear and detailed image field of view, Thermion’s 2 LRF XL50 germanium F50/1.0 objective lens truly expands the advantages of an HD thermal sensor. The use of aspherical lenses and diffractive optical elements maintains a high aperture ratio, enabling sharp and precise image projection across the entire sensor area.
High-precision ambidextrous lens focusing
An objective lens with an internal focusing mechanism gives a clear and sharp image at any range. Ergonomic focusing wheels are located on the right and left sides, making focusing easy for either left—or right-handed users.
Ground-breaking image processing
The pixel-to-pixel image transfer from the sensor to the display makes the image as sharp as possible. Adjustable sensor sensitivity amplification combined with new filtration algorithms offers the hunter great opportunities for observation in diverse weather and temperature conditions. The amplification setting helps to define the animal’s trophy features and ensures a clear rendering of objects and backgrounds in the field of view.
Wireless remote control included
The Pulsar BT wireless Bluetooth remote control completely duplicates the regular buttons. The remote control features excellent ergonomics − the buttons activate the most used functions while rotating or pressing the encoder, operating fine adjustment and menu navigation. The buttons and encoder’s design, size and positioning are customized for use with both bare and gloved hands. It takes minimum movement for a hunter to control the riflescope enabling them to maintain maximum concentration on the hunting process with the remote control placed in any convenient position on the fore-end or rifle butt.
Specifications
Reticle
Click range, H/V, mm at 100m: 4800 / 4800
Click value, H/V, mm at 100m: 24 – 1.75Ñ…, 12 – 3.5Ñ…, 6 – 7Ñ…, 3 – 14Ñ…
Number of preloaded reticles: 10
Sensor
NETD, mk: < 35
Type: uncooled
Resolution, pixels: 1024x768
Pixel pitch, µm: 12
NETD, mK: < 35
Frame rate, Hz: 50
Optics
Objective lens: F50 / 1.0
Magnification, x: 1.75 – 14
FOV (HxV)degrees / m@100m: 14x10.5 / 24.6Ñ…18.5
Eye relief, mm: 50
Display
Type: AMOLED HD
Resolution, pixels: 1024x768
Laser rangefinder
Max. measuring range, m: 800
Measurement accuracy, m: ± 1
Safety class for laser equipmentaccording to IEC 60825-1:2014: 1
Wavelength, nm: 905
Video recorder
Video / photo resultion, pixel: 1024x768
Video / photo format: .mp4 / .jpg
Build-in memory, GB: 64
Bluetooth
Wireless protocol: BLE 4.2
Wireless standard: IEEE 802.15.1
Frequency, Ghz: 2,4
WI-FI
Wireless protocol: Wi-Fi
Wireless standard: IEEE 802.11 b/g/n/ac (WPA)
Frequency, Ghz: 2.4 / 5
Environmental characteristics
Degree of protectionIP code (IEC60529): IPX7 (waterproof)
Operating temperature range, °Ð¡: -25 – +50
Connections and compatibilities
Compatible mounts: Standard 30 mm rings
Supported application: Stream Vision 2, Stream Vision Ballistics
Shock resistance on the smooth-bore rifles, caliber: 12
Max. recoil power on rifled weapon (Eo), Joules: 6000
Weight & size
Body material: Aluminum alloy
Dimensions, mm: 426x78.5x94.5
Weight, kg: 1,03
