Product Overview

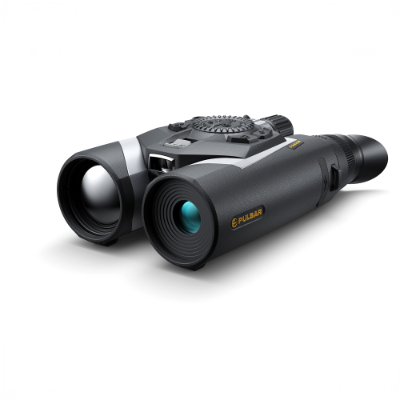

Symbion LRF multispectral imaging binoculars are available in two models: DXT50 and DXR50. They combine a 4K digital sensor for clear daytime and twilight observation with a premium thermal imaging sensor for detecting heat signatures in any condition.
Built-in infrared illuminator ensures dependable visibility in low light, while picture-in-picture mode lets you view both channels simultaneously for complete situational awareness.
Integrated laser rangefinder provides fast, precise distance measurements. Meanwhile, the intuitive, rugged housing enables comfortable one-hand operation and is built to withstand demanding professional field use.
|
Model |
LRF DXR50 |
|
SKU |
77458 |
|
Main Specifications |
|
|
Detection range |
Thermal 2300 m |
|
Sensor |
|
|
Type |
Thermal uncooled, microbolometric Digital 4K CMOS |
|
Resolution, pixels |
Thermal 640x480 / 12 µm Digital 3840x2160 |
|
Sensor NETD, mK |
< 35 |
|
System NETD, mK |
< 18 |
|
Frame rate, Hz |
50 |
|
Optical Characteristics |
|
|
Objective lens |
Thermal F50/1.0 Digital F50/1.8 |
|
Magnification, x |
Thermal 4 – 32x Digital 6.5 – 26x |
|
Field of view (HxV), degrees |
Thermal 8.8° Digital 5.8° |
|
Field of view (HxV), m@100m |
Thermal 15.4 m Digital 10.2 m |
|
Diopter adjustment, D |
-5 / +5 |
|
Interpupillary distance adjustment, mm |
62.5 – 74 |
|
Eye relief, mm |
13 |
|
Infrared Illuminator |
|
|
Emitter |
LED |
|
IR wavelength, nm |
850 |
|
Display |
|
|
Type |
MicroLED (AMOLED) |
|
Resolution, pixels |
1440x1080 |
|
Laser Rangefinder |
|
|
Max. measuring range, m |
1500 |
|
Measurement accuracy, m |
± 1 |
|
Wavelength, nm |
850 |
|
Laser safety class |
Class 1 (IEC 60825-1:2014) |
|
Video Recorder |
|
|
Video / photo resolution, pixels |
1440x1080 |
|
Video / photo format |
.mp4 / .jpg |
|
Built-in memory |
64 GB |
|
Wi-Fi |
|
|
Wireless protocol |
Wi-Fi |
|
Wireless standard |
IEEE 802.11 b/g/n/ac (WPA) |
|
Frequency, GHz |
2.4 / 5 |
|
Environmental Characteristics |
|
|
Degree of protection |
IP67 (waterproof) |
|
Operating temperature range, °C |
-25 – +50 |
|
Connections & Compatibility |
|
|
Mount type |
1/4" socket Tripod adapter with ARCA-SWISS mount support |
|
Supported application |
Stream Vision 2, Stream Vision Ballistics |
|
Weight & Size |
|
|
Body material |
Magnesium alloy |
|
Dimensions, mm |
207 x 132 x 72 |
|
Weight, kg |
1 (battery included) |
