Product Overview
The HIKMICRO STELLAR SX60L 3.0 Thermal Scope is equipped with a high-performance 1280×1024 @12μm thermal detector, offering exceptional sensitivity (NETD＜18mK) and cutting-edge Image Pro 2.0 processing. This ensures you can capture the finest details in any weather or lighting condition, without interruption. Its large 1.03” AMOLED display with 2560×2560 resolution enhances target detection for faster and more accurate spotting. The built-in 1000m laser rangefinder (LRF) and ballistic calculation further enhance shooting precision, making the SX60L 3.0 the perfect choice for field and forest hunting.
KEY FEATURES:
- 1280 x 1024 resolution @12 μm thermal detector
- High sensitivity thermal module NETD <18 mK (@25°C, F# = 1.0)
- 60 mm, F1.0 lens with detection range up to 3100 m
- 2560 × 2560 resolution 1.03-inch OLED display
- Built-in lens laser rangefinder up to 1000 m, with ballistic calculation
- Rechargeable internal batteries and external battery, 10h continuous operation
- High shock resistance up to 1000 g/0.4 ms
SPECS:
Thermal Module
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Max. Resolution: 1280×1024
- Frame Rate: 25Hz
- Pixel Interval: 12 μm
- Response Waveband: 8 μm to 14 μm
- NETD: Less than 18 mK (@25°C),F#=1.0
- Lens (Focal Length): 60mm, F1.0
- Detection Range: 3100m
- Focus Mode: Focus Ring
- Field of View(H × V), Degrees / m @100m: 14.6°×11.7°/25.6m×20.5m
Image Display
- Display: 2560x2560,1.03 inch OLED
- Contrast Adjustment: Yes
- Brightness Adjustment: Yes

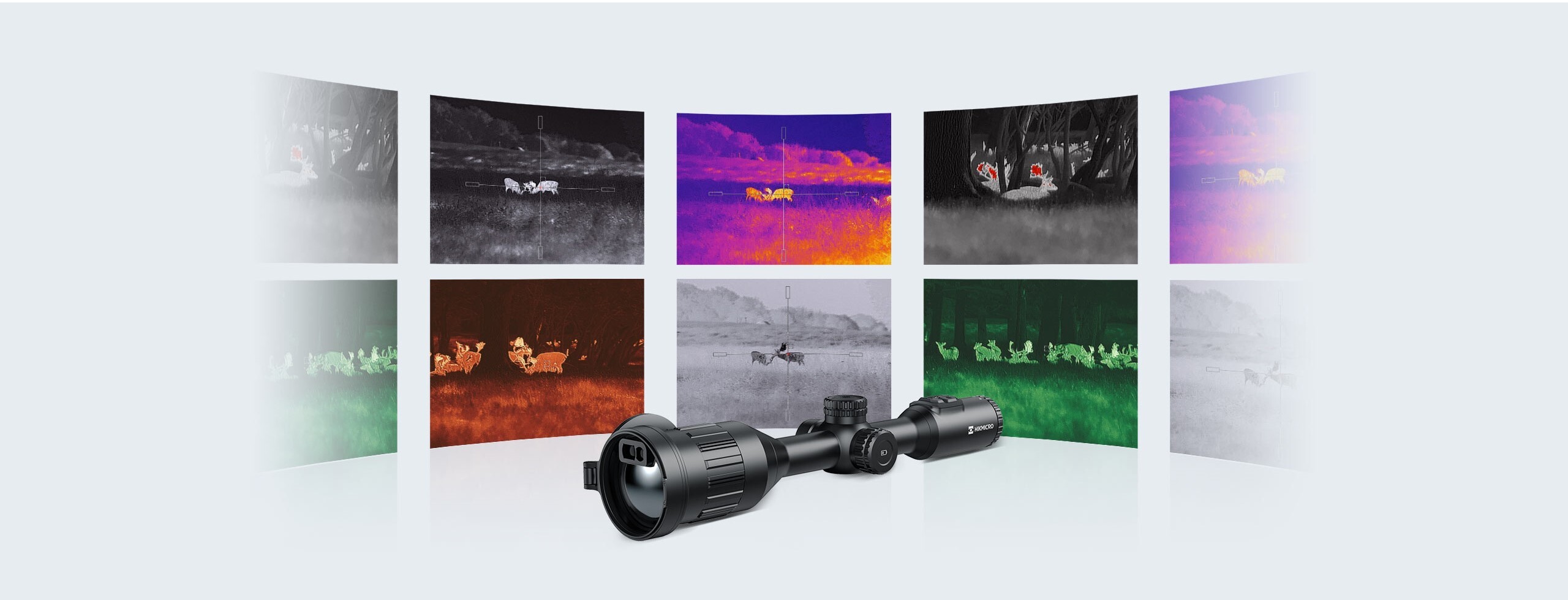

- Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Flat Field Correction Mode: Auto, Manual, External Correction
- Exit Pupil: 6mm
- Eye Relief: 45mm
- Diopter (Range): -4D to 4D
- Tone Adjustment: Cold, Warm
- Zoom Pro: No
- HSIS (HIKMICRO Shutterless Image System): No
General
- Protection Level: IP67
- Weight: 1000g without external battery
- Dimension: 452.6mm x 94.3mm x78.9mm
- Mounting: Standard 30mm
- Working Temperature: -30 °C to 55 °C (-22 °F to 131°F)
- Center Height: 41mm
System
- Record Video: On-board Video Recording
- Capture Snapshot: Yes
- Hotspot: Yes
- Standby Mode: Yes
- Storage: Built-in EMMC (64 GB)
- PIP: Yes
- Hot Track: Yes
- Distance Measurement: Yes
- Audio Recording: Yes
- Recoil-activation Recording: Yes

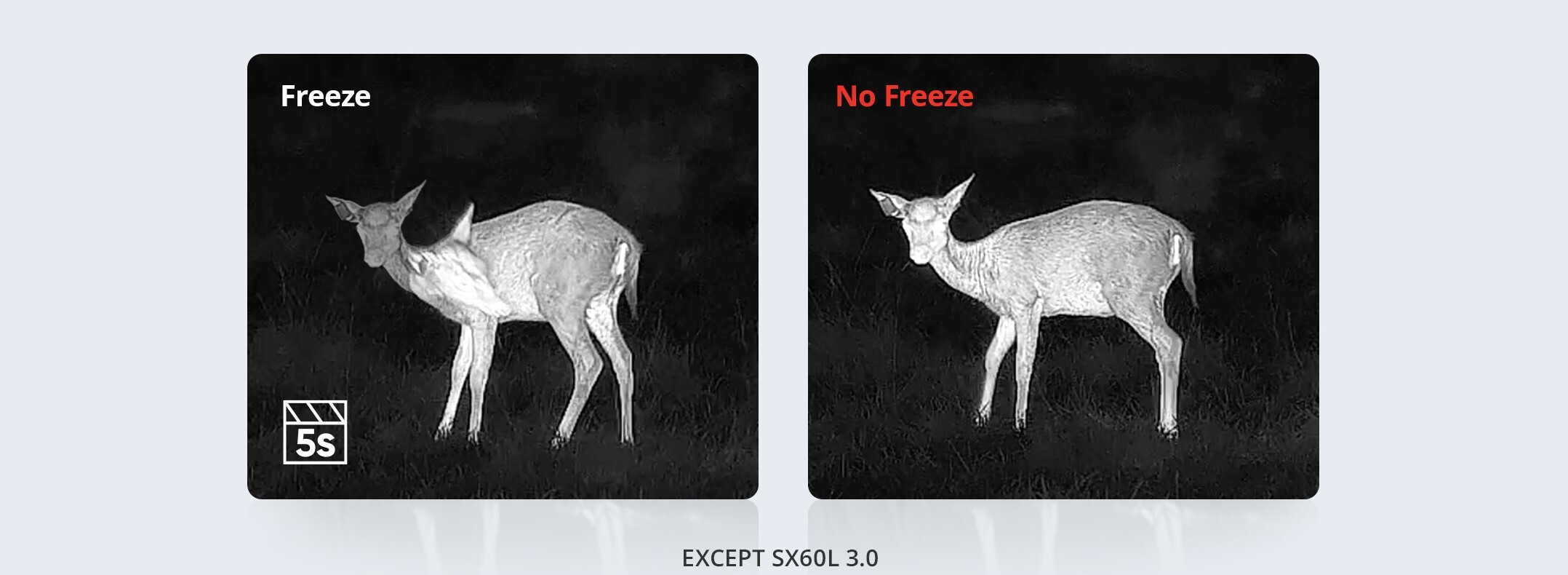

- Freeze Zeroing: Yes
- Max. Recoil: 1000g/0.4ms
- Local Album: Yes
- Zeroing Profiles: 5
- Ballistic Calculation: Yes
Power Supply
- Battery Type: Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external)
- Battery Operating Time: 9 hours continuous running (@25°C, LRF on)
- Type-C Power Supply: 5 V DC/2 A, USB Type-C interface Supports QC3.0
* Only the built-in battery will be charged via the type-C cable. Use the battery charger to charge the external battery.
Laser Rangefinder
- Safety Class for Laser: Class 1
- Wavelength: 905nm
- Max. Measuring Range: 1000m
- Measurement Accuracy: ±1 m
- LRF Module in Lens: Yes
- Min. Measuring Range: 10m

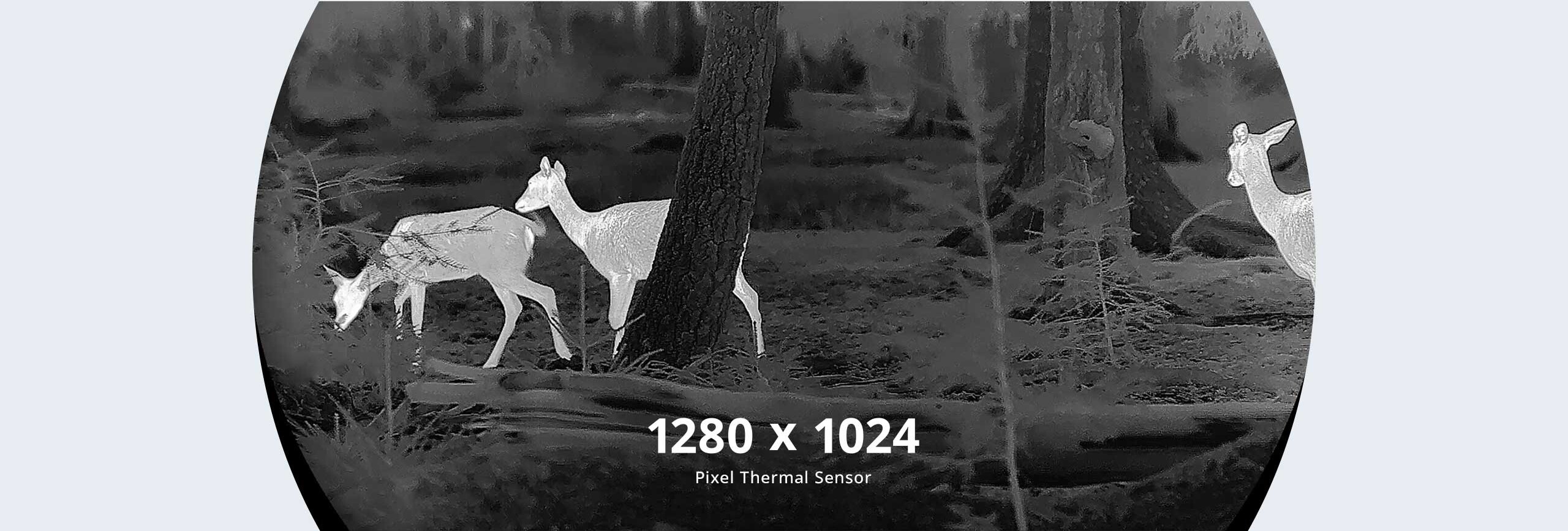

High-end thermal detector , Enhanced Visibility
HIKMICRO STELLAR 3.0 covers 384, 640 and 1280 thermal detector, delivering superior thermal imaging capabilities. Thanks to SX60L 3.0’s cutting-edge 1280x1024-pixel thermal sensor, it produces ultra-clear image with impressive details, perfect for precise trophy recognition. The device makes it easy to discern the animal's outline, anatomy, and unique behavioral traits with clarity.
Ultra-Sensitive Thermal Imaging 15mK Captures Finest Details
With the first breakthrough of HIKMICRO STELLAR 3.0, the NETD is less than 15mK, the device's ability to perceive temperature differences has reached a new level. The more sensitive the device, the stronger its perception of the surroundings, resulting in clearer images and the finest details. This allows thermal imaging technology to increasingly assist hunters in making every hunting decision.

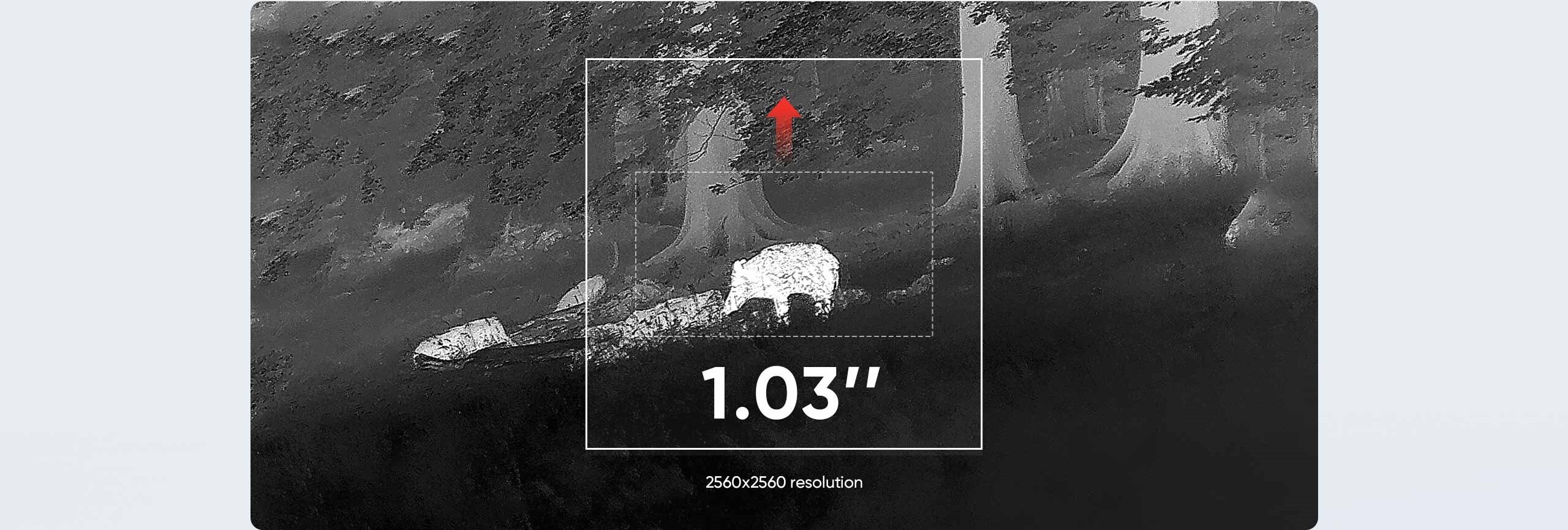

1.03” OLED Large Display for Cinema-Quality Hunting Trips
HIKMICRO thermal imaging scope STELLAR 3.0 upgrades its display to a larger OLED screen to 1.03’’ with 2560x2560 resolution to enhance your immersive hunting trips, helping you to observe more details and get rid of eye fatigue after a long time using. Moreover, hunting can be more accurate with a larger display, as the shooter can see the impact points more clearly. It’s all up to you. Choose between sub-round or square viewing modes to suit your hunting style and preferences.
Seamless Viewing With Groundbreaking Shutterless (HSIS) Tech
HSIS (HIKMICRO Shutterless Image System) will cause no image quality loss, it is based on the continuous study of the different grey backgrounds, and it is a dynamic learning process. This eliminates the need for periodic calibration pauses, ensuring you never miss a critical moment in the field. Enjoy an uninterrupted viewing experience with HIKMICRO STELLAR 3.0’s innovative HSIS technology.
Innovative Image Pro 2.0 Algorithm Generates Rich Images
In hunting, observing the environment where the prey is located is just as important as observing the details of the prey itself. Image Pro 2.0 Algorithm in HIKMICRO STELLAR 3.0, with its groundbreaking image analysis algorithm, can provide the most detailed and rich images with less noise. It allows you to not only distinguish the details of the prey but also to observe the background environment it is in.
Redefine Shooting Accuracy and Experience

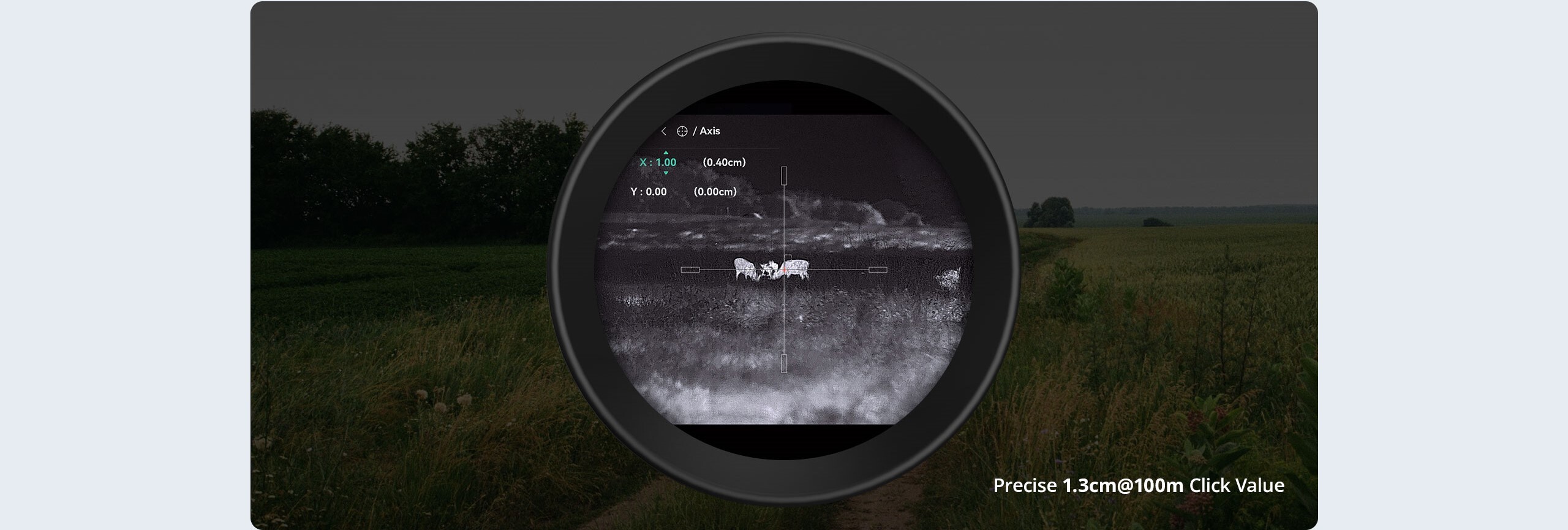

Fine-Tuned 1.3 cm @ 100m Clicks for Sharper Targeting
HIKMICRO thermal scope STELLAR 3.0 provides very accurate zeroing adjustments, as fine as 1.3 cm @100m. This makes it easier to set up your thermal imaging scope perfectly, helping you shoot more accurately and improve your hunting success.
1000m LRF Module in the Lens for Accurate Distance Measurement
Accurately ranging quarry helps to ensure an ethical shot. The innovative built-in lens laser range finder in the HIKMICRO STELLAR SQ50L 3.0 & SX60L 3.0 thermal scope not only maintains the traditional scope shape but also ensures hunters range-find up to 1,000m with an accuracy of ±1 metre.

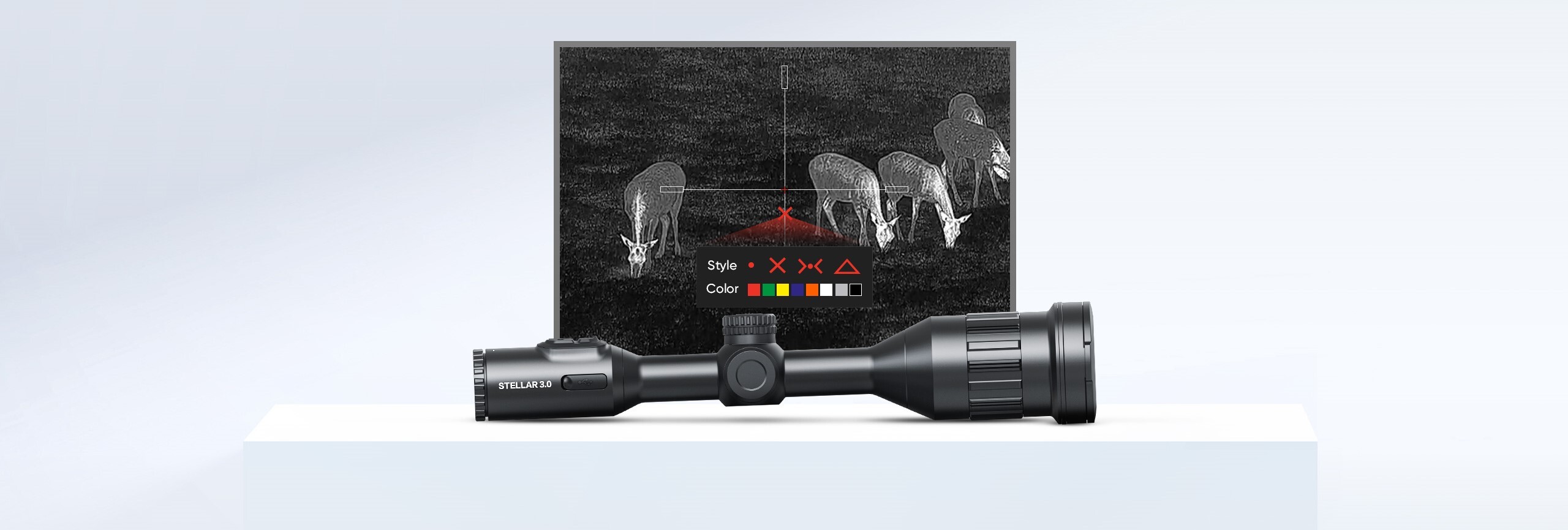

Precise Long-Range Hunting Powered by Optimized Ballistic Calculation
HIKMICRO STELLAR 3.0’s optimized ballistic calculation ensures accurate shooting at any distance. The new ballistics calculation carries out automatic inclination angle compensation analysis and also supports customizing the color and style of the suggested impact point, and optional bullet type for more accurate judgments during long-range hunting.
Quick Zeroing Either Via the Device or Sight app
Despite remote control, browsing & downloading, sharing incredible moments, and firmware updates, HIKMICRO SIGHT also can help you do STELLAR 3.0 quick zeroing. Simply configure the deviation of the impact point from the expected target via Sight app and synchronize to your scopes.

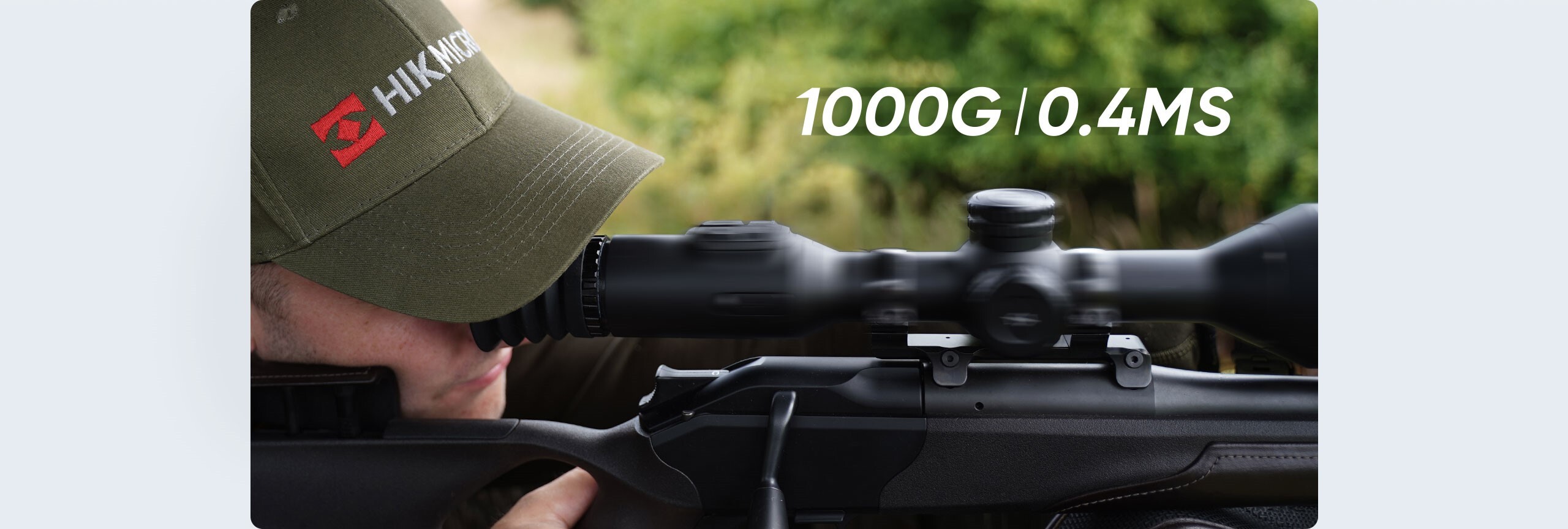

High Shock Resistance
Aluminum Alloy housing and rugged components enable HIKMICRO thermal imaging scope STELLAR 3.0 high shock resistance up to 1000g/0.4ms on larger calibers to .375 H&H, 12-gauge, and 9.3 × 64.
User-friendly Operation for Effortless Hunting

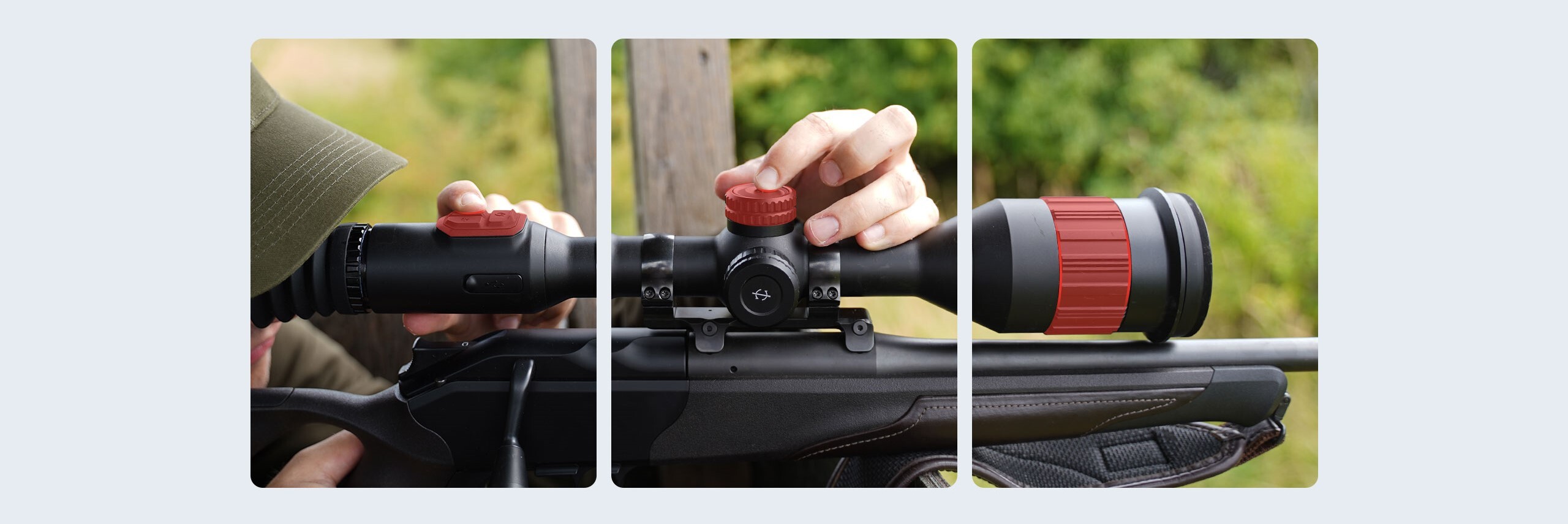

Upgraded Appearance, Rooted in Tradition
HIKMICRO STELLAR 3.0 thermal scope continues the classical-style design that fits with 30 mm standard mount rings, meeting the demands of professional hunters who value tradition. Moreover, it features a softer eyepiece, a magnetic lens cover, and a distinguishable focus ring, which can be operated intuitively even with gloves.
Ultra-Long Operation Time, No Exciting Moments Missed
Two built-in rechargeable batteries and one extra swappable 18650 battery give the HIKMICRO STELLAR 3.0 a long 9-hour playtime. Hunters can have fun without worrying about the batteries dying with this better power setup.

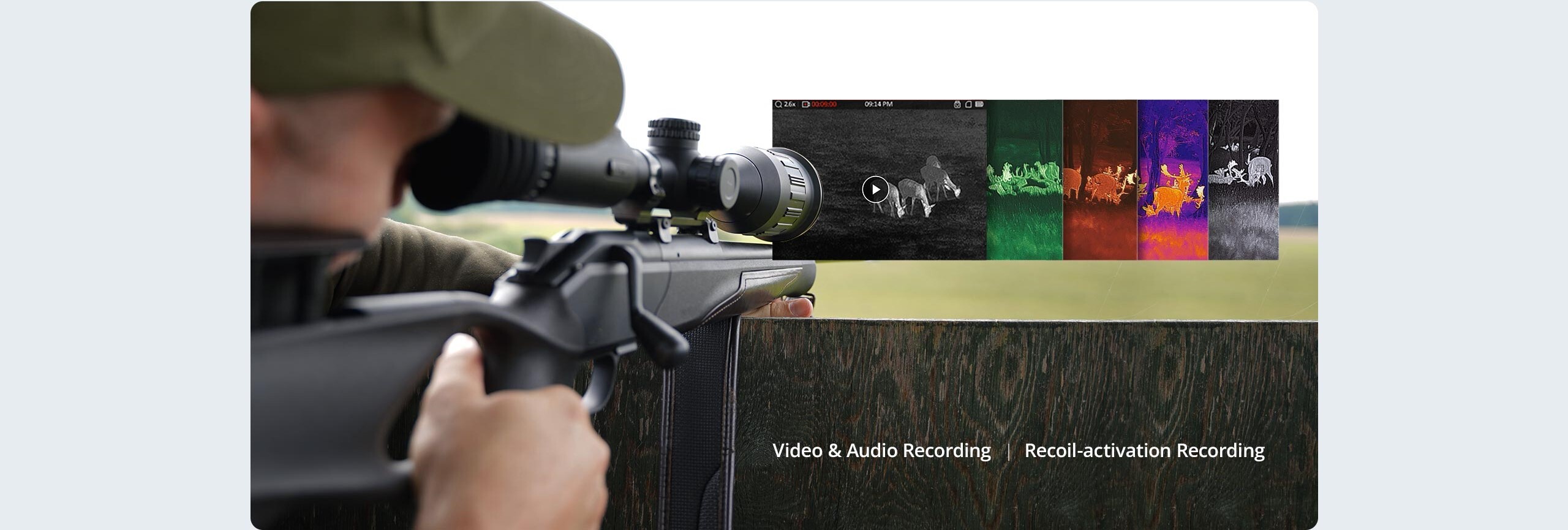

Instant Check the Exciting Moments At Local Album
The recoil-activation function can record a video before and after you shoot, to better help you clarify whether you get your game. The videos are saved in the local album of HIKMICRO thermal imaging scope STELLAR 3.0 provides quick and immediate checking.
