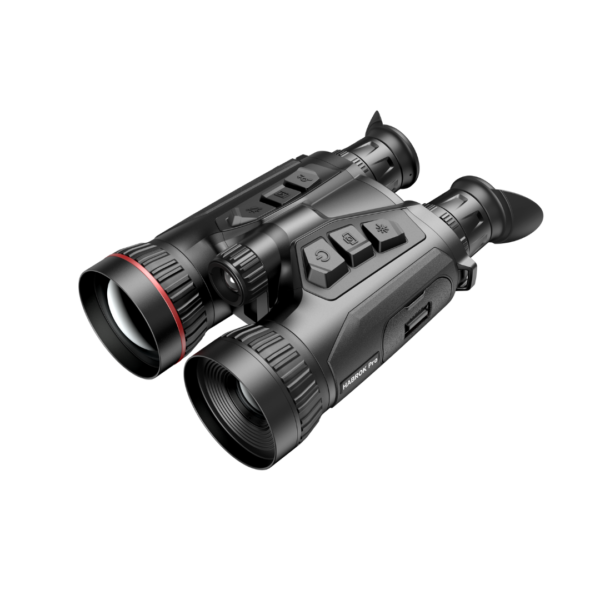

HIKMICRO Habrok Pro HX60LS Multi-Spectrum Binocular

HIKMICRO HABROK Pro HX60LS multi-spectrum binocular is equipped with an 15mK NETD, 1280 x 1024 50Hz thermal detector @60mm thermal lens and an advanced 4K digital detector with 60mm lens, ensuring smooth image display, perfect image quality and detail recognition in various weather and light conditions. Combined with a 1000m Laser rangefinder and replaceable IR emitter @850nm wavelength, this all-in-one binocular can be applied mainly in forest & field hunting, birding, animal searching, rescuing and marine scenario.

Key Features:

• 1280 x 1024 resolution @12μm 50Hz thermal detector
• High sensitivity thermal module NETD ＜15mK (@25°C, F# = 1.0)
• 60mm, F1.0 lens with thermal detection range up to 3100m
• 3840 x 2160 4K ultra high-resolution, 60mm, F2.2 digital camera
• 1920 × 1080 resolution 0.49-inch OLED display
• Replaceable 850nm IR emitter and 1000m Laser Rangefinder
• 5.5 h+ continuous operation time with replaceable battery pack
• 1050g lightweight, with a compact and ergonomic design

Specifications

Image Sensor
VOx Uncooled Focal Plane Arrays

Max. Resolution
1280 x 1024

Frame Rate
50Hz

Pixel Interval
12μm

Response Waveband
8μm to 14μm

NETD
Less than 15 mK (@25°C),F#=1.0

Lens (Focal Length)
60mm, F1.0

Focus Mode
Focus Ring

Detection Range
3100m

Min. Focusing Distance
3m

Magnification
2.6x-20.0x (7.7x)

Field of View(H × V), Degrees/ m @100m
14.6° × 8.8° / 25.6m x 15.4m

Image Sensor
1/1.8'' Progressive Scan CMOS

Max. Resolution
3840 x 2160

Focal Length
60mm, F2.2

Min. Working Distance
3m

Focus Mode
Focus Ring

Magnification
5.5x - 22.0x（4x)

Field of View (H × V), Degrees/m @100 m
7.3° x 4.1° / 12.6m × 7.2m

Smart IR
Yes

IR Illuminator Wavelength
850nm

Viewing Range at Night
400m

Replaceable IR Illuminator
Yes

Display
0.49-inch, OLED, 1920 ×1080

Palettes
Thermal: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green
Monochrome; Optical: Day, Night, Green, Yellow, Auto

Exit Pupil
8mm

Eye Relief
15mm

Diopter (Range)
-5D~+3D

Brightness Adjustment
Yes

Tone Adjustment
Cold, warm

Contrast Adjustment
Yes

FFC (Flat Field Correction) Mode
Auto, Manual, External Correction

Zoom Pro
No

Image Pro 3.0
Yes

Sync Pro
Yes

Record Video
Yes

Capture Snapshot
Yes

Audio Recording
Yes

Storage
Built-in EMMC (64 GB)

Hotspot
Built-in EMMC (64 GB)

Hot Track
Yes

Digital Magnetic Compass
Yes

GPS
Yes

Local Album
Yes

Standby Mode
Yes

Battery Type
Replaceable and Rechargeable Li-ion Battery Pack

Battery Operating Time
5.5h (25 °C, with hotspot off, LRF on)

Type-C Power Supply
5V/9V DC, 3A
Support External Power Supply, Support Direct Charging

Dimension
152.8mm × 81.95 mm × 231.5 mm (6.0" × 3.2" × 9.1")

Working Temperature
-30℃ ~ +55℃

Weight
1050g with battery pack

Protection Level
IP67

Interpupillary Adjustment Range
60 mm to 74 mm

Mounting Adapter
1/4“-20-UNC

Safety Class for Laser
Class 1

Wavelength
905nm

Max. Measuring Range
1000m

Measurement Accuracy
±1m

Min. Measuring Range
10m
