Product Overview
The HIKMICRO HABROK 4K HQ35L 5.5–22×60 multi-spectrum binocular combines cutting-edge technology for unmatched performance in the field. It features a high-sensitivity 640 × 512 thermal detector with 20mK NETD and a 35mm thermal lens, paired with an advanced 4K digital sensor and a 60mm lens to deliver exceptional image clarity and detail recognition in all weather and lighting conditions. With an integrated 1000m laser rangefinder and two interchangeable IR emitters, the HABROK 4K HQ35L is a versatile all-in-one solution ideal for forest and open-field hunting, birdwatching, wildlife observation, search and rescue operations, and marine applications.
Key Features:
- 640 × 512 resolution @12 μm thermal detector
- High sensitivity thermal module NETD < 20mK
- 35 mm, F1.0 lens with thermal detection range up to 1800m
- 3840 × 2160 4K ultra high-resolution CMOS detector
- 1920 × 1080 resolution 0.49-inch OLED display
- Two 850 nm & 940 nm replaceable IR illuminators and Laser Rangefinder of 1000m distance
- 8h+ continuous operation time with replaceable battery
- 798g lightweight, with a compact and ergonomic design
Specifications
Thermal Module
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 640 × 512
Frame Rate: 50 Hz
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD: Less than 20 mK (@25°C), F#=1.0
Lens (Focal Length): 35 mm, F1.0

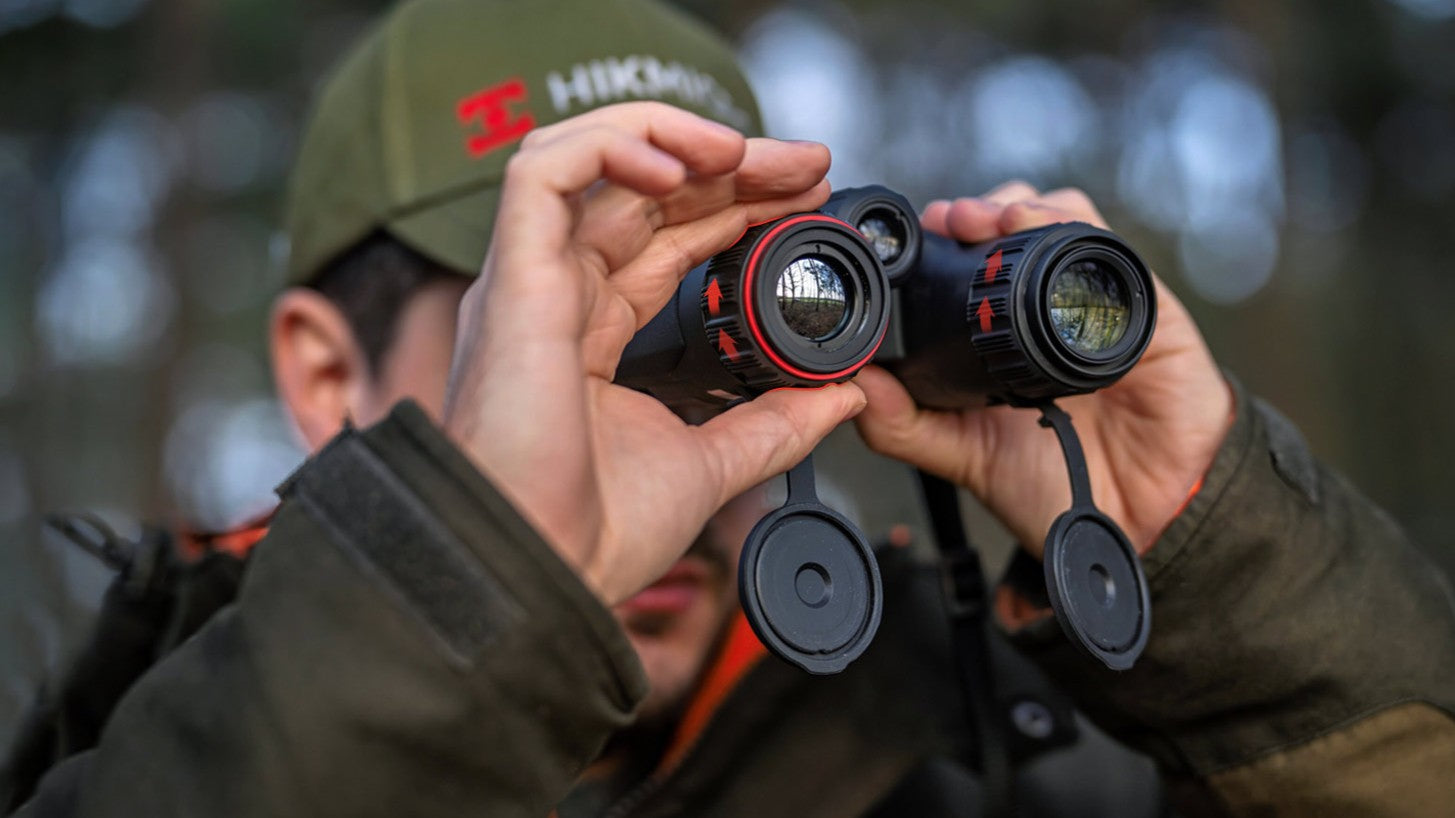

Focus Mode: Focus Ring
Detection Range: 1800 m
Min. Focusing Distance 3.5 m
Magnification: 3.0 × to 22.0 × (7.3 ×)
Field of View(H × V), Degrees/ m @100 m: 12.5° × 10.1° / 22.0 m × 17.6 m
Optical Module
Image Sensor: 1/1.8'' Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Focal Length: 60 mm, F2.2
Min. Working Distance: 3 m
Focus Mode: Focus Ring
Magnification: 5.5 × to 22.0 × (4 ×)
Field of View (H × V), Degrees/ m @100 m: 7.3° × 4.1° / 12.6 m × 7.2 m
Smart IR: Yes

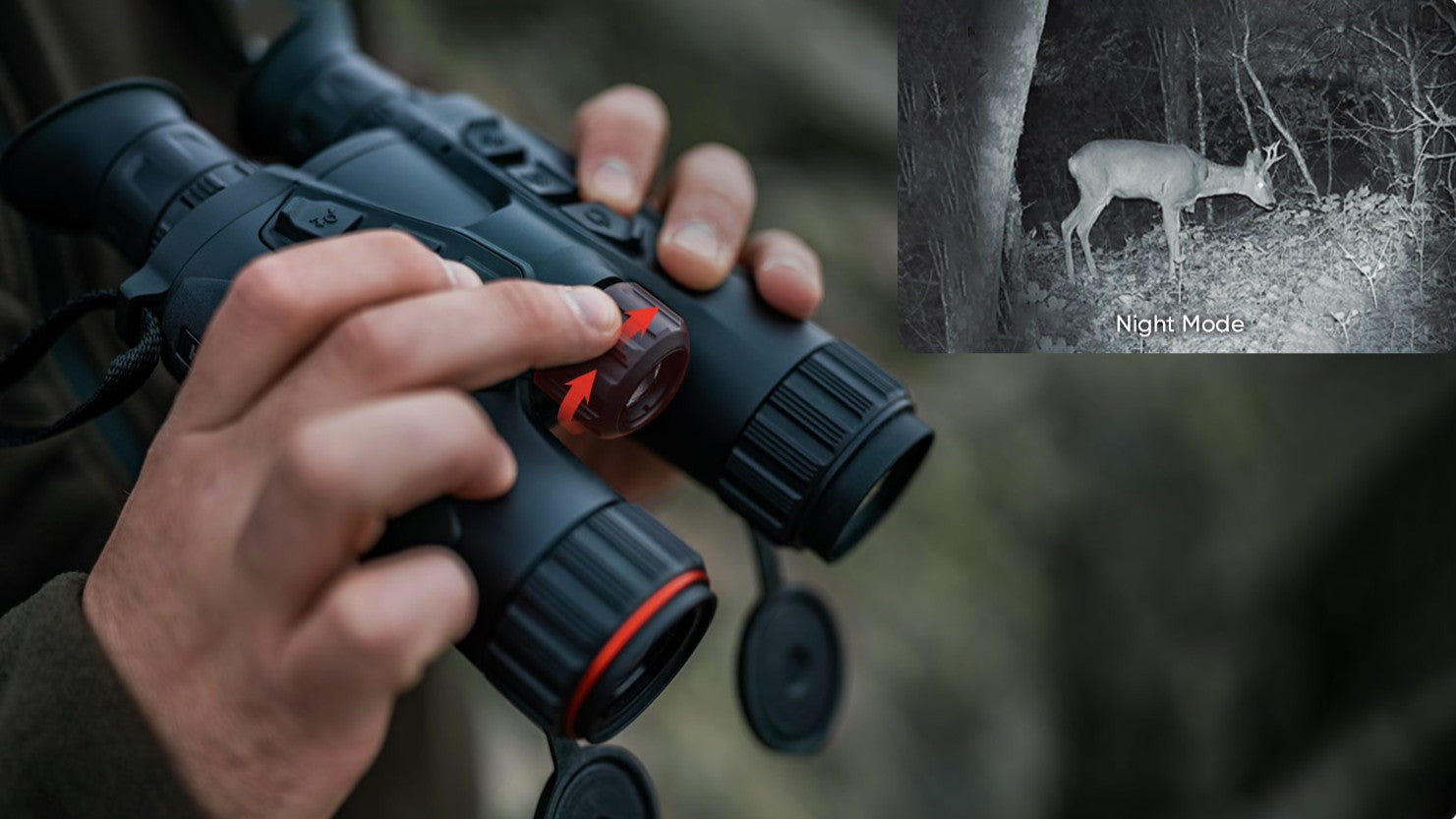

IR Illuminator Wavelength: 940 nm (default) and 850 nm (replaceable)
Viewing Range at Night: 400 m
Replaceable IR Illuminator: Yes
Image Display
Display: 0.49 inch, OLED, 1920 × 1080
Palettes Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
Exit Pupil: 8 mm
Eye Relief: 15 mm
Diopter (Range): -5 D to +3 D
Brightness Adjustment: Yes
Tone Adjustment: Cold, warm
Contrast Adjustment: Yes
Zoom Pro: Yes
System
Record Video: Yes
Capture Snapshot: Yes
Audio Recording: Yes
Standby Mode: Yes
Storage: Built-in EMMC (64 GB)
PIP: Yes
Hotspot: Yes
Hot Track: Yes
Digital Magnetic Compass: Yes
GPS: Yes
Local Album: Yes
Power Supply
Battery Type: Replaceable and Rechargeable Li-ion 18650 Battery
Battery Operating Time: ≥8 h (25°C, with hotspot off)
Type-C Power Supply: 5 V DC, 2 A Support External Power Supply, Support Direct Charging
General
Protection Level: IP67
Dimension: 138.1 mm × 68.5 mm × 222.4 mm (5.44" × 2.7" × 8.75")
Working Temperature: -30°C ~ +55°C
Weight: 798 g without battery
Interpupillary Adjustment Range: 60 mm to 74 mm
Mounting Adapter: 1/4“-20-UNC

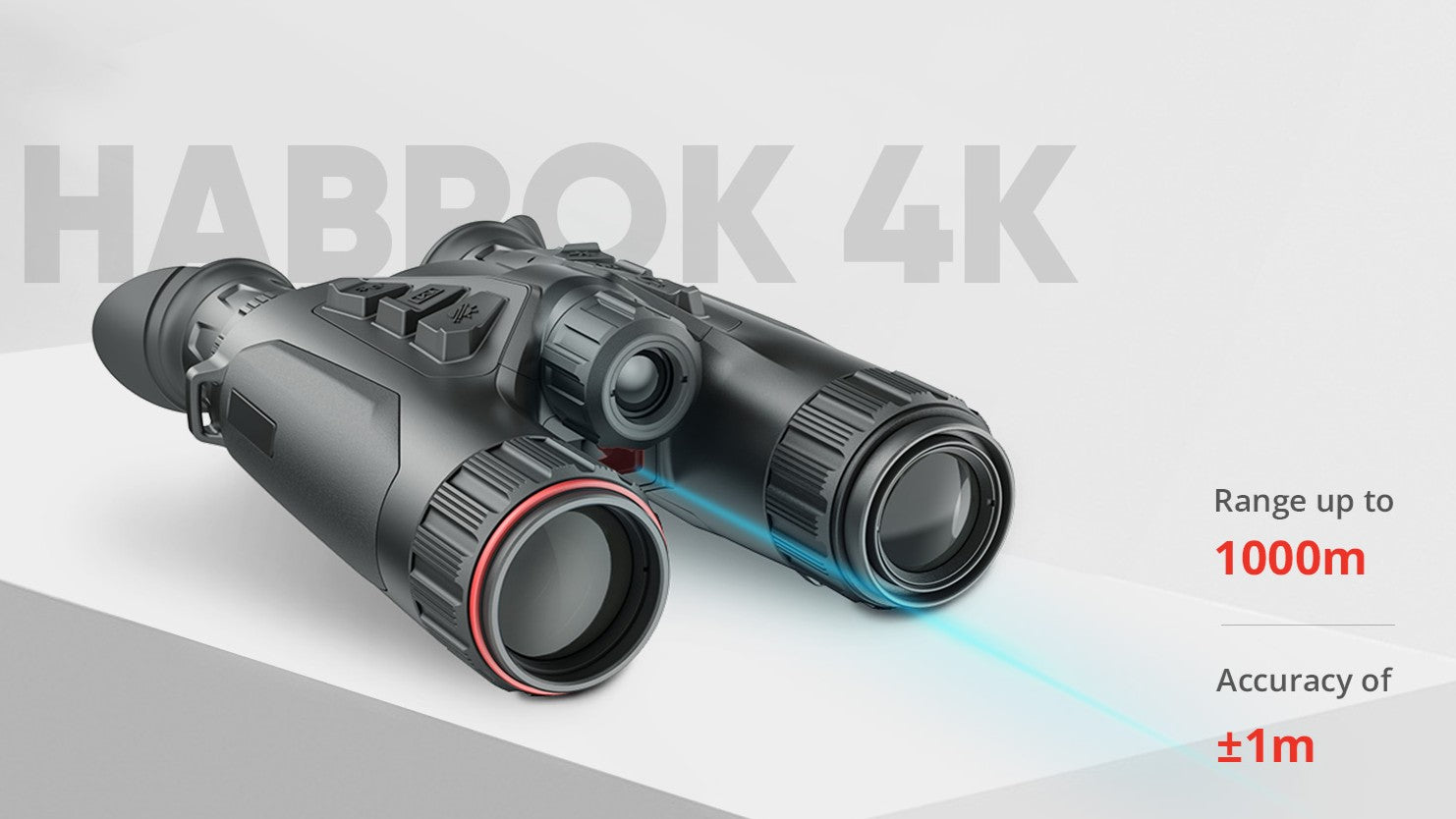

Laser Rangefinder
Safety Class for Laser: Class 1
Wavelength: 905 nm
Max. Measuring Range: 1000 m
Measurement Accuracy: ±1 m
Min. Measuring Range: 10 m
