Product Overview

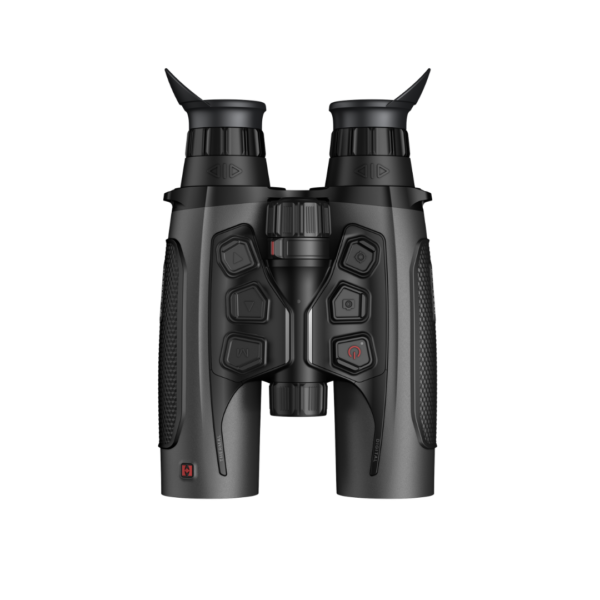

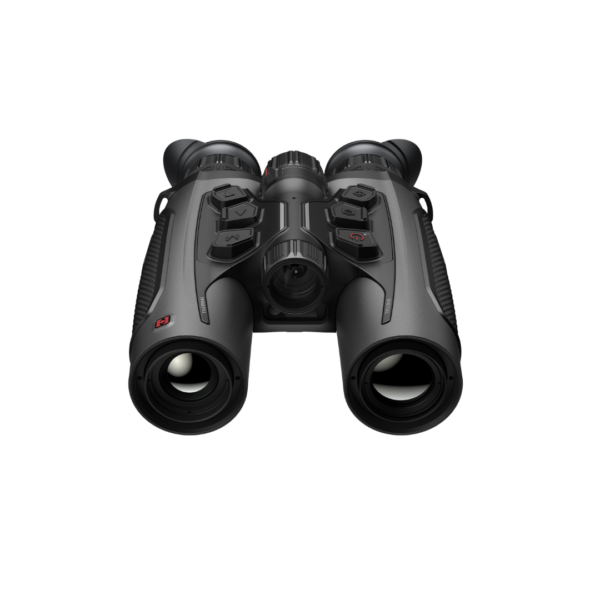

HIKMICRO HABROK 4K 2.0 HE25L 2.0 is a powerful and innovative digital and thermal binocular designed especially for daytime use. Combined with a 256 thermal detector, an advanced 4K digital detector for a 5.5x to 22x @60 mm lens, and a 1000m laser rangefinder, this all-in-one binocular can be mainly applied in forest & field hunting, birding, animal searching, adventuring, and rescuing in various weather conditions.
Key Features:
- 256 × 192 resolution @12 μm thermal detector
- High sensitivity thermal module NETD < 18 mK (@25°C, F# = 1.0)
- 25 mm, F1.0 lens with thermal detection range up to 1200 m
- 3840 × 2160 4K ultra high-resolution CMOS detector
- 60 mm, F2.2 digital lens with 5.5x to 22x digital zoom
- HIKMICRO Shutterless Image System (HSIS)
- 940 nm & 850 nm replaceable IR illuminators and Laser Rangefinder of 1000 m distance
- 895g lightweight, with a compact and ergonomic design
Specification
Image Sensor
VOx Uncooled Focal Plane Arrays
Max. Resolution
256 × 192
Frame Rate
50 Hz
Pixel Interval
12 μm
Response Waveband
8 μm to 14 μm
NETD
Less than 18 mK (@25°C), F#=1.0
Lens (Focal Length)
25 mm, F1.0
Focus Mode
Rear Focus Wheel
Detection Range
1200 m
Min. Focusing Distance
3 m
Magnification
4.3x~17.2x (4x) Support 2×, 3x, 4x, 5x Zooming Value, Support Zoom in and out
Field of View(H × V), Degrees/ m @100m
7.0° × 5.3°/12.2 m × 9.3 m
Image Sensor
1/1.8 Progressive Scan CMOS
Max. Resolution
3840 × 2160
Focal Length
60 mm, F2.2
Min. Working Distance
8 m
Focus Mode
Rear Focus Wheel
Magnification
5.5x~22.0x（4x) Support 2×, 3x, 4x, 5x Zooming Value, Support Zoom in and out
Field of View (H × V), Degrees/m @100 m
7.3° x 4.1°/12.8 m × 7.2 m
Smart IR
Yes
IR Illuminator Wavelength
940 nm (default) and 850 nm (replaceable)
Viewing Range at Night
400 m
Replaceable IR Illuminator
Yes
Display
0.49 inch, OLED, 1920 × 1080
Palettes

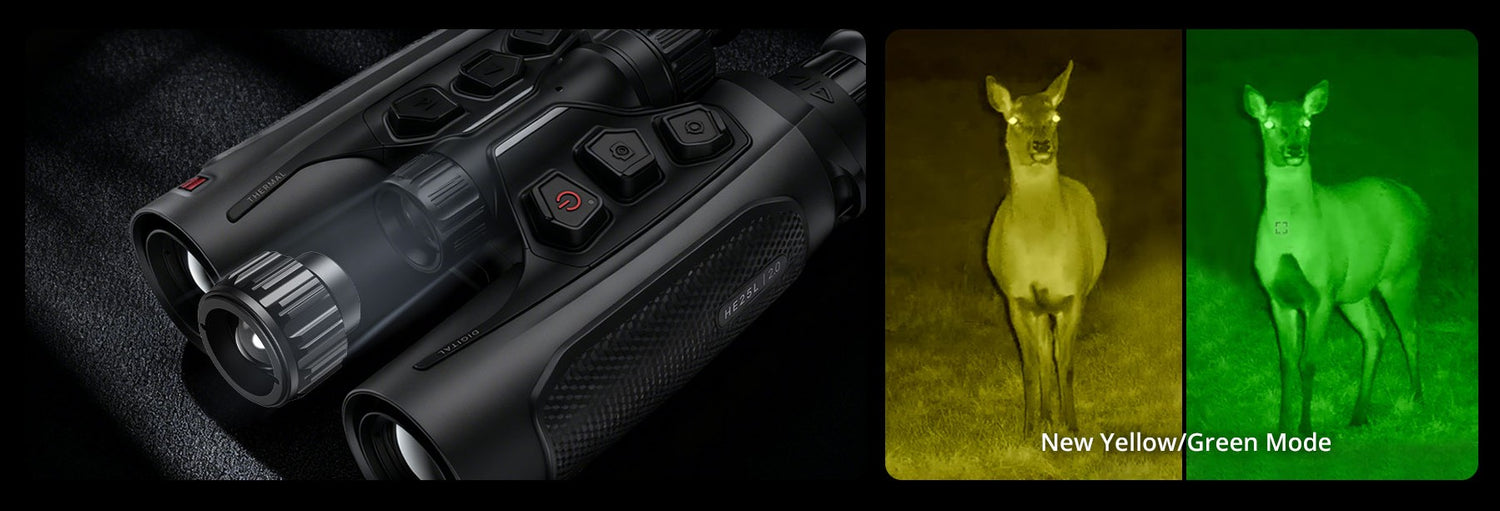

Thermal: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green
Monochrome; Optical: Day, Night, Auto, Green, Yellow
Exit Pupil
8 mm
Eye Relief
15 mm
Diopter (Range)
-5D~+3D
Brightness Adjustment
Yes
Tone Adjustment
Cold, Warm
Contrast Adjustment
Yes
Electric Image Stabilization
Supports Both Thermal and Digital Channels, Starting from 2x
Zoom Pro
Yes
HSIS (HIKMICRO Shutterless Image System)
Yes
Record Video
Yes
Capture Snapshot
Yes
Audio Recording
Yes
Standby Mode
Yes
Storage
Built-in EMMC (64 GB)
PIP
Yes
Hotspot
Yes
Hot Track
Yes
Digital Magnetic Compass
Yes
GPS
Yes
Local Album
Yes
Battery Type
Replaceable and Rechargeable Li-ion Battery
Battery Operating Time
≥6.5 h (25 °C, with hotspot and LRF on)
Type-C Power Supply
5V DC, 2 A. Supports External Power Supply, Supports Direct Charging
Protection Level
IP67
Dimension
143.1mm × 74.8 mm × 223.3 mm (5.63" × 2.95" × 8.8")
Working Temperature
-30℃~+55℃
Weight
895g without Batteries
Interpupillary Adjustment Range
60 mm to 74 mm
Mounting Adapter
1/4“-20-UNC
Laser Range Finder
Safety Class for Laser
Class 1
Wavelength
905 nm
Max. Measuring Range
1000 m
Measurement Accuracy
±1 m
Min. Measuring Range
10 m
