Product Overview

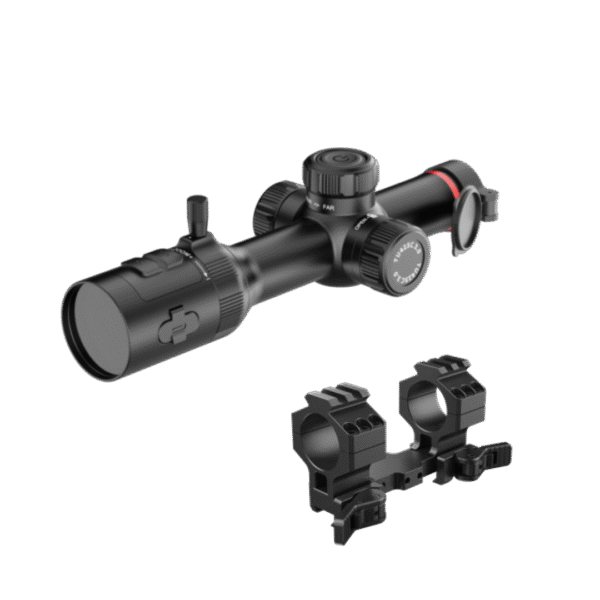

The TU425c is the smallest and lightest thermal scope in the Guide TU Gen 3 lineup, weighing in at just 438g. Designed in a Low Power Variable Optic (LPVO) style, it delivers the perfect balance of compact form and advanced performance, ideal for hunters, professionals and tactical users seeking top-tier functionality without the bulk. Includes a Quick Release Mount value at $500.
Equipped with AI-enhanced imaging, a shutterless design, ergonomic controls, and IP68-rated protection, the TU425C is built to perform in the toughest conditions. Dual-band Wi-Fi connectivity adds convenience for streaming, sharing, and remote control via mobile devices. The TU425C 3.0 delivers uncompromising clarity, reliability and speed all in an ultra-compact package.
INCLUDES QUICK RELEASE SCOPE MOUNT
Quick Release Mount Scope Tube Torque Settings = <2.5N·m / 22.13 in-lbs
Specifications
Sensor
- Type: Uncooled VOx Infrared Detector, 8 to 14μm
- Resolution: 400×300@12μm
- NETD: 20mK
- Frame rate: 50 Hz
Lens
- Objective lens: 25mm, F1.0
- Field of view: 8.2°×8.2°
- FOV m@100m: 14×14
- Magnification: 0.7x~2.8x
- Detection range: 1300m/1400yd
- Focus: Manual
Display
- Display type: 1.43'' AMOLED 466×466
- Colour palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Hardware
- WIFI: 2.4G, 5G
- Interface: USB-C (Charge/USB2.0)
- Tube diameter: Standard 30 mm
- Others: Microphone, Bluetooth
System
- Recording function: Photo/Video (Audio recording included)
- Memory capacity: 32GB
Power
- Battery type: 18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External)
- Operating time: 12 hours
Environmental
- Operating temp.: -20°C to 50°C / -4°F to +122°F
- Shock: 6000J/1200G
- Encapsulation: IP68
Physical
- Weight: (g/oz) 438/15.45
- Size (mm/in): 245×89×70 / 9.65×3.50×2.76
- Standard: Device, Lens Cover, Quick-Release Scope Mount, Carry Bag, 18650 Battery ×2, Battery Charger, 5V 2A Adapter, USB-A to USB-C Cable, Quick Start Guide, Warranty Card
- Optional: Bluetooth Remote Control, Laser Rangefinder, 18650 Battery
