Product Overview

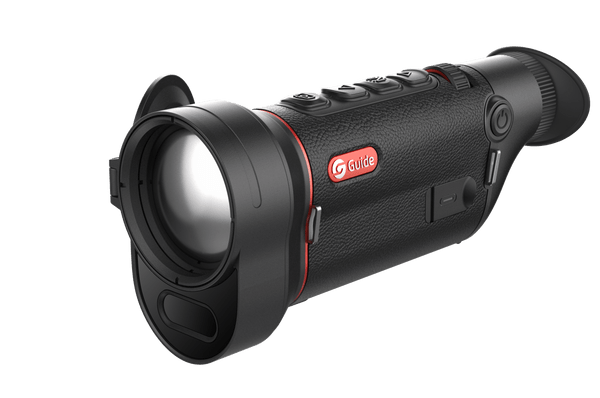

The Guide TD653 LRF thermal imaging monocular is engineered for precision and performance, featuring a 640×512@12μm Thermal Sensor and fully integrated laser rangefinder (LRF) within a compact and lightweight housing. Its central focusing roller enables smooth, one-handed operation, while the ambidextrous, symmetrical design ensures optimal handling comfort for both left- and right-handed users.
Equipped with a high-capacity rechargeable battery, the Guide TD653 LRF delivers up to 12 hours of continuous operation, making it ideal for extended field use. The rugged IP67-rated construction provides superior protection against dust, water, and harsh environmental conditions.
Built-in Wi-Fi connectivity allows seamless pairing with external devices for real-time image transmission, data sharing, and firmware updates, enhancing both functionality and user experience in the field.
Key Features
- 640 x 512 px @12μm Thermal Sensor
- 50mm Lens
- NETD < 20mK
- 1000m LRF
- 10 Hours Battery Life
- IP67 Encapsulation
Specifications
Sensor
- Type: Uncooled VOx Infrared Detector, 8 to 14μm
- Resolution: 640×512@12μm
- NETD: 20mK
- Frame Rate: 50Hz
Lens
- Objective lens: 50mm, F1.0
- Field of view: 8.8°×6.6°
- FOV m@100m: 15x12
- Magnification: 2.6x~20.8x
- Detection range: 2600m/2800yd
- Focus: Manual
Display
- Display type: 0.36'' AMOLED 1280×960
- Colour palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
- Eyepiece: Eye relief: 20 mm; Diopter -6 to ± 6; Zoom: 13.8x
Hardware
- Laser rangefinder: 1000m/1090yd
- WIFI: 2.4G, 5G
- Interface: USB Type-C
- Others: Microphone, Bluetooth
System
- Recording function: Photo/Video (Audio recording included)
- Memory capacity: 32GB
Power
- Battery Type: Single 18650 battery (built-in) and customized battery (external)
- Operating time: 10 hours
Environmental
- Operating temp: -20°C to 50°C / -4°F to +122°F
- Encapsulation: IP67
Physical
- Weight (g/oz): 472/16.65
- Size (mm/in): 189.5×67.5×88/7.46×2.66×3.46
- Standard: Device, Dust-Free Cloth, Hand Strap, Eye Mask, Battery Charger, 18650 Battery ×1, 5V 2A Adapter (US or
UK or Australia or Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card - Optional: Bluetooth remote control, 18650 battery
