Product Overview

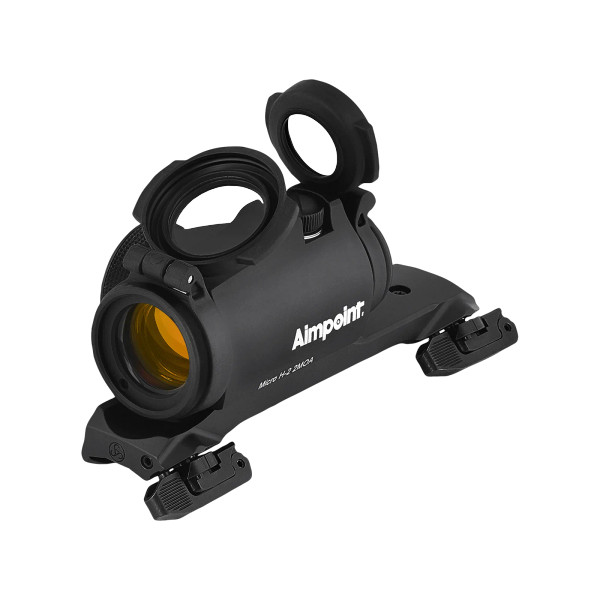

The Aimpoint® Micro H-2 (2MOA) sight has been paired with a Sauer Universal Mount (SUM) to create this package. This ready to mount configuration provides quick dismounting and remounting, without any influence on settings or accuracy on rifles equipped with Sauer Universal Mount (SUM) interface.
The extremely compact Micro H-2 offers up to five years of constant on power from a single CR-2032 battery, and has 12 brightness settings for optimal performance in any light conditions. This sight is completely waterproof, and is a result of feedback coming from hard core customers desiring an even more hard core Micro sight. With a redesigned and reinforced house body, as well as flip-up covers protecting the lenses, the Micro H-2 can withstand all types of environmental conditions. And thanks to new optical lenses and cutting edge lens coatings, the optical performance and the shape and clarity of the red dot are radically improved.
| OPTICAL SPECIFICATIONS |
|---|
| Operating principle: Reflex collimator sight with LED |
| Optical magnification: 1x |
| Aiming dot size: 2 MOA |
| Dot intensity: Visible against a background luminance of 0.1 to 55 000 lx |
| Dot color: Peak Wavelength: 655 ± 15 nm |
| NVD compatible: No |
| Optical coating: Anti-reflex, all surfaces and multi-layer. |
| Clear aperture: 18 mm (.7 in) |
| Eye relief: Unlimited |
| POWER SOURCE |
|---|
| Battery type: 3V lithium battery, type CR2032. |
| Battery life - Day time use: 50 000h (over 5 years of continuous use) |
| Power intensity: 1 Off position and 12 daylight settings |
| PHYSICAL SPECIFICATIONS |
|---|
| Length sight only: 68 mm (2.7 in) |
| Length conf: 150 mm (5.9 in) |
| Width sight only: 41 mm (1.6 in) |
| Height sight only: 36 mm (1.4 in) |
| Height conf: 45 mm (1.8 in) |
| Weight sight only (incl battery): 94 g (3.3 oz) |
| Weight conf: 244 g (8.6 oz) incl mount |
| Housing material: High strength aluminum |
| Housing finish and color: Semi-matte black |
| Housing anodized: Yes |
| Material lens cover: Thermoplastic Elastomer (TPE) |
| Surface treatment: Anodized, semi-matte |
| Adjustment: Range ±1 m at 100 meters (±1 yds at 100 yds) in windage and elevation, 1 click = 13 mm at 100 meters = 10 mm at 80 meters = .44 in at 100 yds |
