Product Overview
The Guide TN650MS combines high-sensitivity thermal imaging with ultra-HD night vision in one compact, rugged binocular. Powered by the Complete ApexVision S1 System Architecture, it delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging, and exceptional long-range detail in any environment.
Featuring a 640 × 512 @12μm thermal detector, 3840 × 2160 low-light CMOS sensor, and ≤15mK NETD sensitivity, the TN650MS allows you to seamlessly switch between thermal, digital night vision, or fused imaging for outstanding situational awareness.
Complete with a built-in 1500m laser rangefinder, GPS, digital compass, and IP67-rated protection, it's built to perform in the most demanding conditions.
Complete ApexVision S1 System Architecture
Guide Sensmart's next-generation thermal imaging solution that redefines the infrared core of outdoor optics from the ground up. Engineered for any condition, ApexVision delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging, and razor-sharp detail at long range.

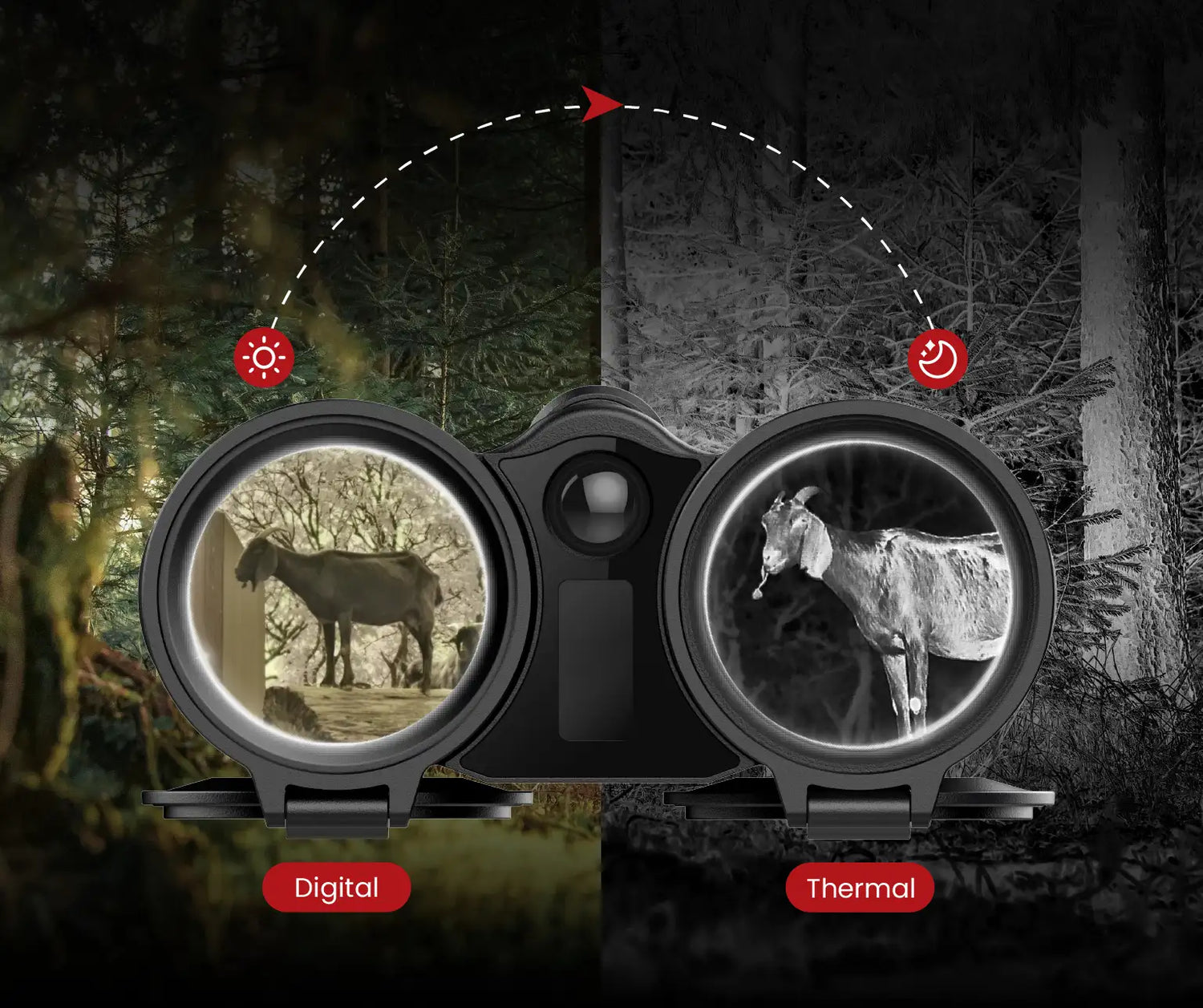

Thermal & Digital, All-Weather Performance
The TN Muo 2.0 Series features a dual-sensor system combining a 640×512 high-sensitivity thermal detector with a 4K low-light CMOS sensor, delivering consistent, reliable image performance across all lighting and weather conditions.

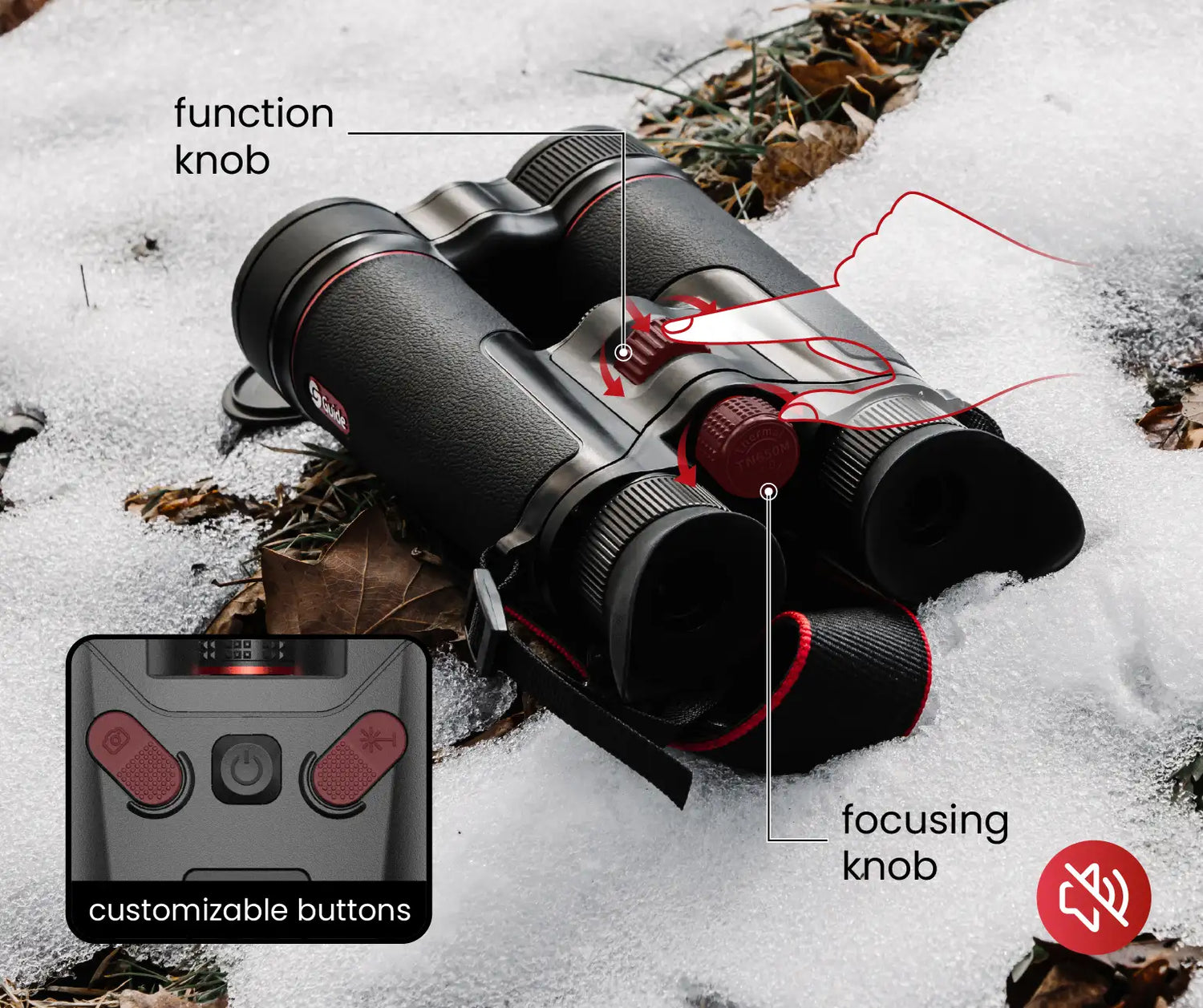

One-Handed Control, Intuitive Operation
The TN Muo 2.0 Series features a streamlined, quiet control layout with multi-function rotary knobs and customisable buttons, making operation simple and efficient. Paired with an updated, intuitive interface, you can easily scroll to select and click to confirm using one hand.
Slim, Lightweight Design
The TN Muo 2.0 Series features a refined, slim housing inspired by classic binocular design, offering a more comfortable grip and improved handling in the field. Now 20% lighter than the previous generation, it delivers better balance and portability for extended use without fatigue.

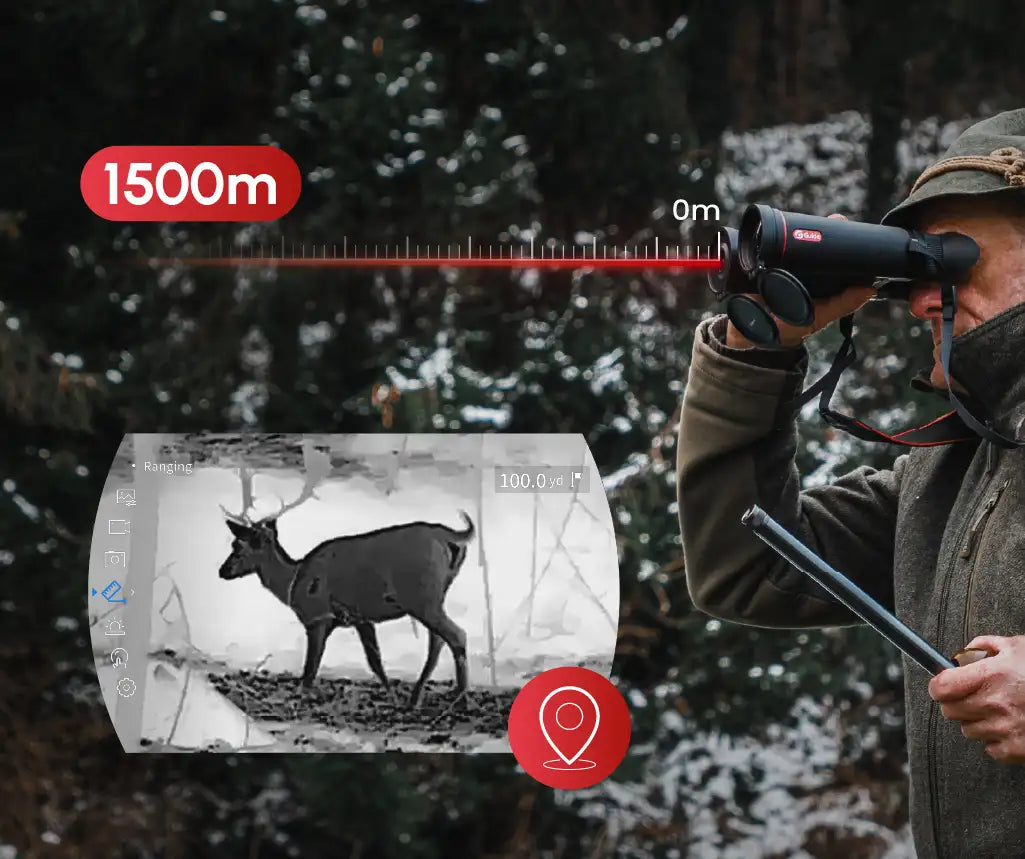

Laser Rangefinder for Precision Targeting
The TN Muo 2.0 Series integrates a 1500m laser rangefinder, along with GPS, a digital compass and gyroscope, delivering accurate distance measurement and reliable target positioning in the field.

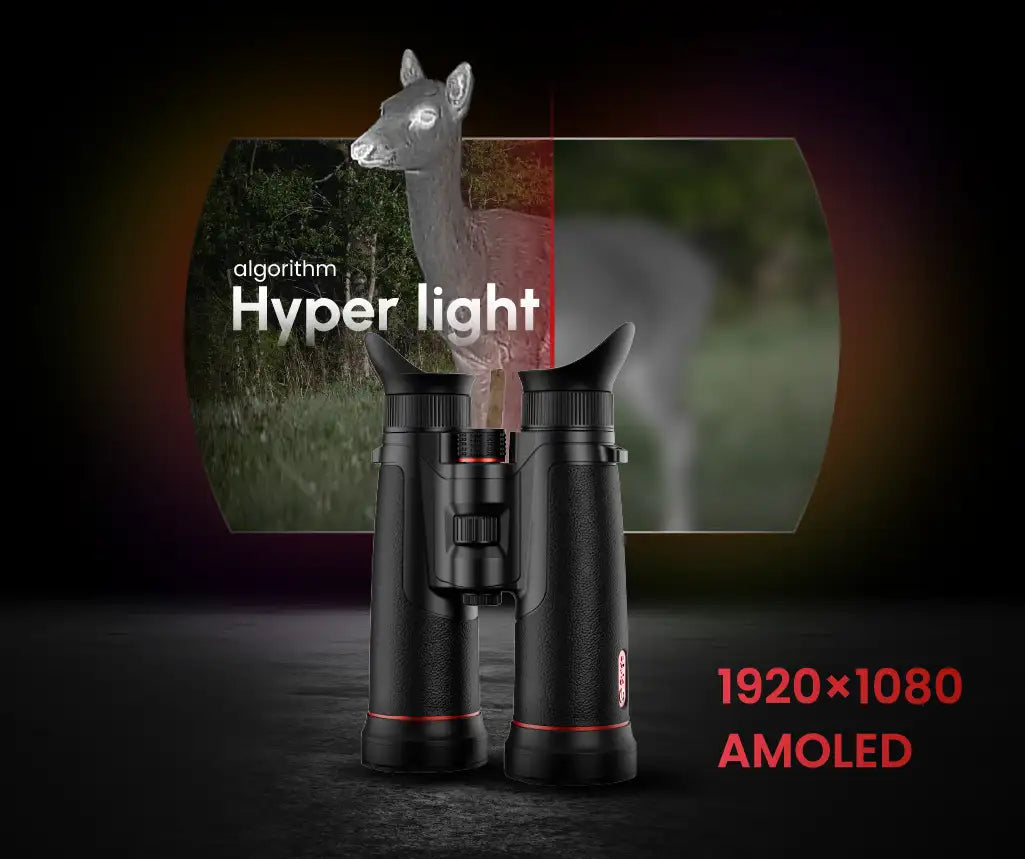

Premium Visuals, Optimised Clarity
The TN Muo 2.0 Series combines a high-sensitivity detector with a 1920×1080 AMOLED display to deliver sharp, detailed imagery. Enhanced by the proprietary Hyper-light algorithm, it produces clearer contrast and improved detail in challenging conditions.
SPECIFICATIONS
| Product Name | Guide TN650MS Multispectral Thermal Binoculars |
|---|---|
| Laser Rangefinder | 1500m |
| Type-C Power Supply | USB-C |
| Battery Operating Time | 5 hours |
| Battery Type | Customized Battery (Built-in) and 18650 ×1 Battery (External) |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Hotspot | 2.4 GHz / 5 GHz Wi-Fi |
| Capture Snapshot | Yes |
| Record Video | Yes |
| Working Temperature | From -20°C to 50°C |
| Dimension | 235×134×63mm |
| Weight | 1110g |
| Protection Level | IP67 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | -6D to +6D |
| Exit Pupil | - |
| Palettes | IR: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia; Visible: Day, Night, Low-light |
| Display | 0.49'' AMOLED 1920×1080 |
| Magnification | Thermal: 3.9x~31.2x; Digital: 2.6x~20.8x |
| Field of View (Degrees/m @ 100m) | Thermal: 8.2°×4.9°; Digital: 5.9°×3.5° |
| Detection Range | Thermal: 2600m/2800yd; Digital: 950m/1000yd |
| NETD | 15mK |
| Response Waveband | Thermal: 8 to 14μm; Digital: CMOS |
| Pixel Interval | Thermal: 12μm Digital: 2μm |
| Frame Rate | 50Hz |
| Sensor Resolution | Thermal: 640×512; Digital: 3840×2160 |
| Lens (Focal Length) | Thermal: 50mm, F1.0; Digital: 70mm, F1.8 |
