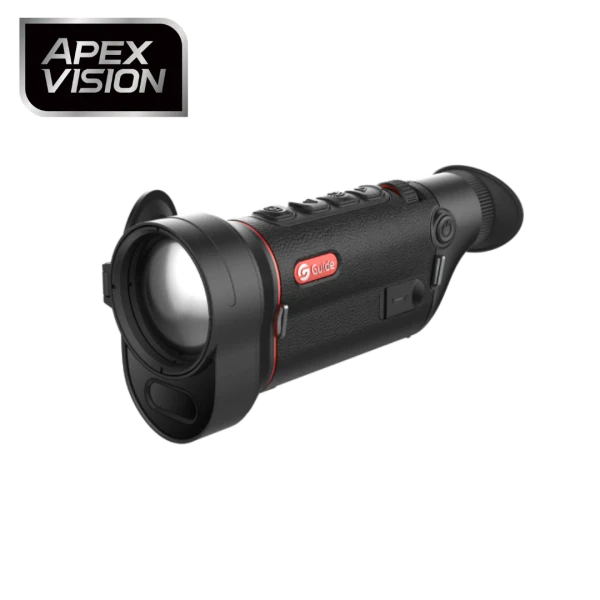

Guide ApexVision TD650LS Thermal Monocular with LRF

The Guide TD650LS Thermal Monocular has been upgraded with the latest ApexVision technology from Guide Sensmart. Equipped with a highly sensitive 640 × 512 @12μm thermal detector with an impressive NETD of <15mK, it provides clear thermal imagery and enhanced target detection in challenging weather and low-visibility conditions.

Featuring an integrated 1200m laser rangefinder, the TD635LS allows users to accurately measure distances while maintaining a lightweight and ergonomic design. The intuitive focusing roller enables smooth one-handed operation, while the symmetrical housing ensures comfortable use with either hand.

Combining advanced thermal performance, long battery life, laser rangefinding capability, and a compact form factor, the Guide TD635LS LRF is an ideal solution for wildlife observation, pest control, search and rescue, security applications, and general outdoor exploration.

Complete ApexVision S1 System Architecture

Guide Sensmart's next-generation thermal imaging solution that redefines the infrared core of outdoor optics from the ground up. Engineered for any condition, ApexVision delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging, and razor-sharp detail at long range.



Powerful 12μm Detector for Sharper Images

The TD Gen3 LRF Series features a 12μm infrared detector, available in 640×512 and 400×300 resolutions, paired with a 35mm lens to deliver crisp, detailed images even in complete darkness.

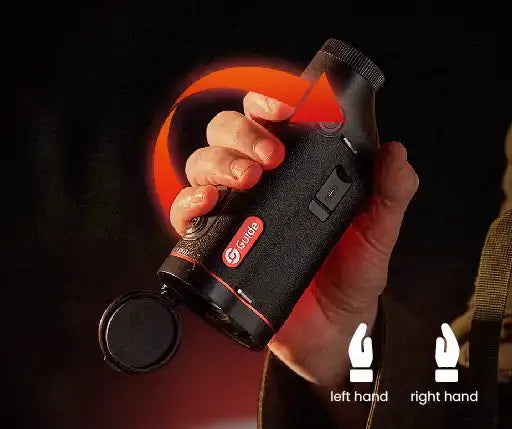

Ambidextrous Design, Effortless One-Handed Operation

Designed for ambidextrous use, the symmetrical housing ensures equal comfort for left- and right-handed users. The ergonomic control layout enables smooth, one-handed operation

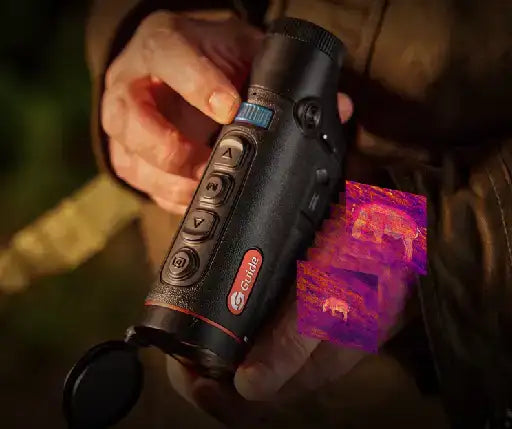

Fine Focus Control, Fingertip Precision

The mini focusing roller allows for fast, precise adjustments with a simple one finger scroll.

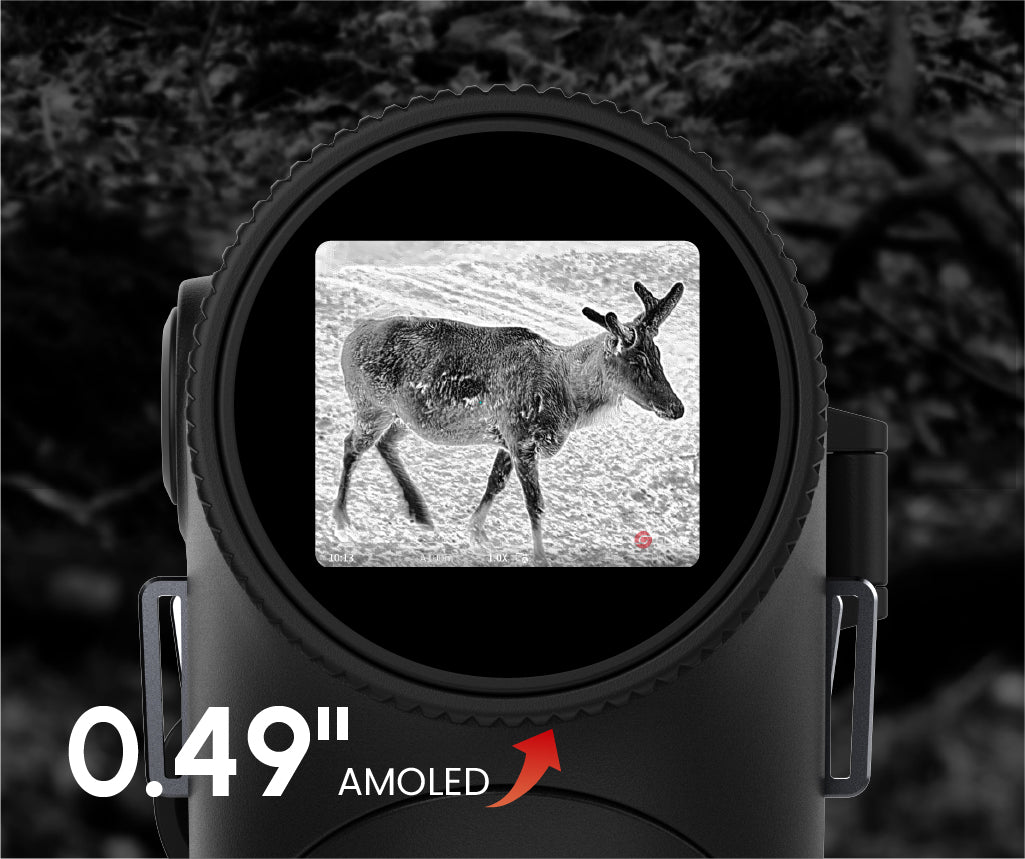

Large AMOLED Display for Upgraded Visuals

Building on the previous generation, the TD Gen3 LRF Series features a 0.49" AMOLED display with 1280×960 resolution, delivering sharper detail and a more comfortable viewing experience.



Built-in LRF For Precise Target Identification

Seamlessly integrated into the design, the built-in laser rangefinder enhances both portability and functionality, offering precise distance measurement up to 1200 metres.





SPECIFICATIONS



Product Name	Guide TD650LS Thermal Monocular with LRF
Laser Rangefinder	1200m
Type-C Power Supply	USB-C (Power supply/USB2.0)
Battery Operating Time	10 Hours
Battery Type	Single, Replaceable 18650 Battery
Audio Recording	Yes
Standby Mode	-
Hotspot	Yes
Capture Snapshot	-
Record Video	Yes
Working Temperature	-20°C to 50°C
Dimension	201×67×88mm
Weight	465g
Protection Level	IP67
Image Pro	N/A
HSIS	N/A
Zoom Pro	N/A
Diopter	-6 to +6
Exit Pupil	-
Palettes	White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Display	0.49'' AMOLED 1440×1080
Magnification	2.91x~23.28x
Field of View (Degrees/m @ 100m)	15×12
Detection Range	2600m
NETD	15mK
Response Waveband	8 to 14μm
Pixel Interval	12μm
Frame Rate	50Hz
Sensor Resolution	640×512
Lens (Focal Length)	50mm
