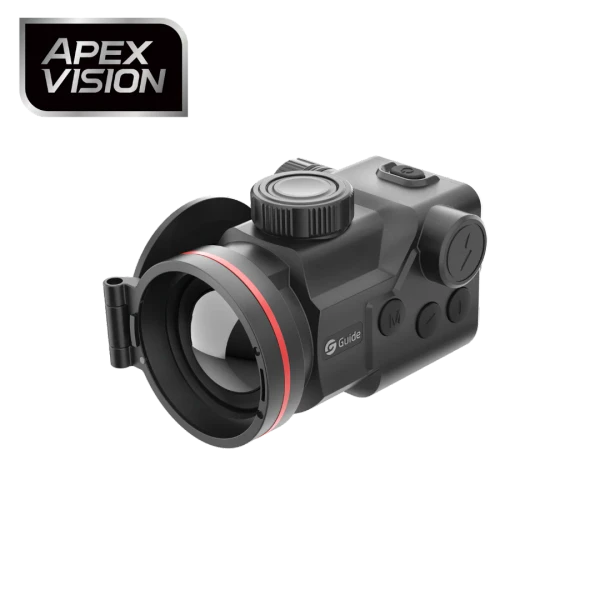

Guide ApexVision TB650S Thermal Clip-On

The GUIDE TB650S 2.0 is a premium thermal clip-on attachment designed for hunters who demand exceptional image quality, precision, and versatility without compromising the balance of their rifle setup. Powered by GUIDE's advanced ApexVision thermal imaging system, it combines next-generation image processing technologies including Hyper-Light image enhancement, G-Zero shutterless technology, and intelligent image optimisation to deliver outstanding clarity, contrast, and target recognition in challenging conditions.

Featuring a high-performance 640×512 @ 12μm thermal sensor with an ultra-sensitive NETD ≤15mK, the TB650S produces exceptional thermal detail and detection performance. The integrated in-lens laser rangefinder enhances downrange accuracy, while the compact, lightweight design weighing less than 490g helps maintain natural rifle balance and handling.

With a powerful 2600m detection range, crisp 0.39" 1920×1080 AMOLED display, and convenient replaceable 18650 battery system, the TB650S is engineered to provide dependable performance and seamless integration with daytime optics for professional and recreational hunting applications.

Complete ApexVision S1 System Architecture

Guide Sensmart's next-generation thermal imaging solution that redefines the infrared core of outdoor optics from the ground up. Engineered for any condition, ApexVision delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging, and razor-sharp detail at long range.



True Shutterless Performance

With G-Zero Shutterless Design, startup is instant and uninterrupted, with no image freezing to distract you or cost you critical moments on target. By removing shutter calibration noise, it also ensures quieter, smoother performance in the field.



Hyper-Light Algorithm. Smarter Clarity.

Powered by an advanced Hyper-Light algorithm and a high-sensitivity thermal detector, it delivers exceptional clarity with finer detail, reduced noise, and enhanced contrast for long-range observation.



Hyper-Light Imaging for Superior Clarity

Powered by an advanced Hyper-Light algorithm, a 12μm detector, and a lag-free AMOLED display, the NOVA Series delivers enhanced contrast and finer detail for exceptional image clarity.



Ultra-Precise Zeroing for 15× Optics

With fine 1.22 cm @ 100 m adjustments, the TB 2.0 Series gives you precise control when zeroing. Optimised for use with daylight optics up to 15×, it maintains accuracy across every shot.



Lightweight and Well-Balanced

Weighing just 480–490 g, the compact, palm-sized design keeps handling easy. Its balanced construction distributes weight evenly when mounted on a daylight scope, improving comfort and control in the field.





SPECIFICATIONS



Product Name	Guide TB650LS Thermal Clip-On
Laser Rangefinder	-
Type-C Power Supply	USB-C (Power supply/USB2.0)
Battery Operating Time	5 Hours
Battery Type	Single, Replaceable 18650 Battery
Audio Recording	Yes
Standby Mode	-
Hotspot	Yes
Capture Snapshot	-
Record Video	Yes
Working Temperature	-20°C to 50°C
Dimension	139×86×79mm
Weight	485g
Protection Level	IP68
Image Pro	N/A
HSIS	N/A
Zoom Pro	N/A
Diopter	-
Exit Pupil	-
Palettes	White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Display	0.39'' AMOLED 1920×1080
Magnification	1x
Field of View (Degrees/m @ 100m)	8.8°×6.6°
Detection Range	2600m
NETD	15mK
Response Waveband	8 to 14μm
Pixel Interval	12μm
Frame Rate	50Hz
Sensor Resolution	640×512
Lens (Focal Length)	50mm
