Product Overview

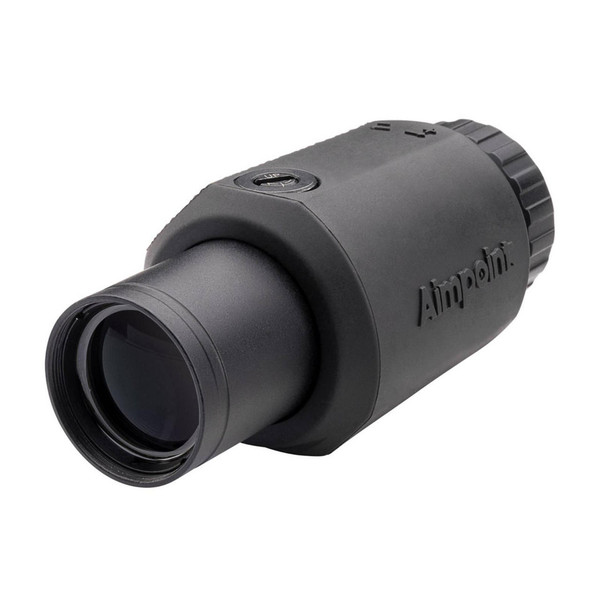

The Aimpoint® 3X-C can be used in conjunction with all Aimpoint® sights for long-range aiming or observation. A variable (-2 to +2) dioptric setting allows this magnifier to be adapted to suit your eye. The 3X-C can also be used as a handheld 3X monocular.
Aimpoint magnifiers utilize the red dot in Aimpoint sights as the aiming reticle, eliminating the need for re-zeroing when shifting between non-magnified and magnified aiming.
The Aimpoint 3X-C is encased in a shock absorbing protective rubber cover that also creates an ideal ergonomic grip. Internal optical adjustments make aligning the magnifier and sight quick and easy.
TECHNICAL SPECIFICATIONS
• = as standard, + = as option
MODEL: 3X-C MAGNIFIER
Product code: AP-200273
Optical magnification: 3x
NVD compatible: Yes
Field of view (FoV): 6°
Exit pupil: 6.5mm
Eye relief: 56mm
Dioptric adjustment: ±2.0 D
PHYSICAL SPECIFICATIONS
Length sight only: 103mm (4")
Width: 45mm (1 3/4")
Height sight only: 45mm (1 3/4")
Weight sight only (incl battery): 220g (7.8 ounces) including rubber cover
